306-008-400-102

Edgeboard Connectors Overview

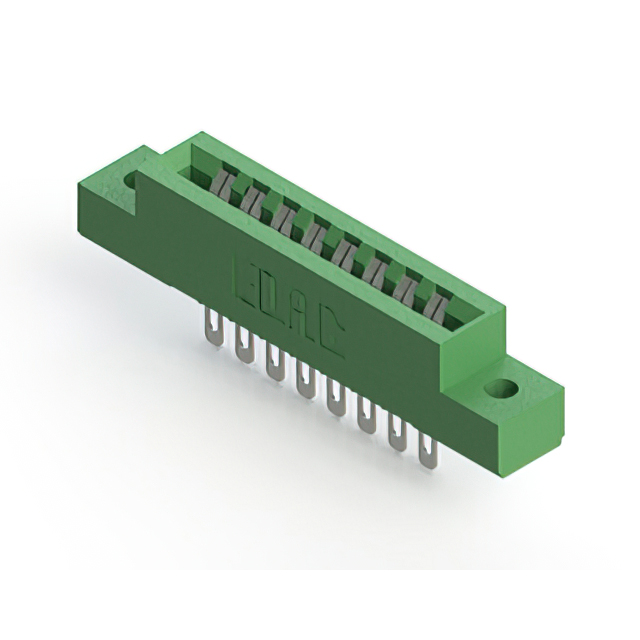

The EDAC Inc. 306-008-400-102 is a standard card edge connector receptacle designed for printed circuit board applications. It features a dual female contact configuration with 16 positions arranged in two rows. The component utilizes a 3.96 mm (0.156 inch) centerline spacing and is engineered to accept PCBs with a nominal thickness of 1.57 mm (0.062 inch). Constructed with a thermoplastic polyester insulator body, the contacts are made from copper alloy and finished with gold plating to ensure reliable electrical performance.

Edgeboard Connectors Feature Summary

• Dual row female contact design for secure card edge mating
• Low profile insulator body construction
• Gold-plated copper alloy contacts for conductivity
• Compatible with 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, row configuration, and termination style. Ensure the selected variant matches the required PCB thickness and mounting orientation for your specific assembly. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with 3.96 mm spacing is required for 0.062 inch thick boards. Consider the 306 series characteristics for general-purpose applications requiring robust mechanical retention. Evaluate thermal and environmental ratings against operational requirements. Confirm that the gold plating specification meets the necessary cycle life and corrosion resistance standards for the intended deployment environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, a line of standard card edge connectors known for their versatility in various electronic assemblies. The series offers multiple position counts and configurations to suit different density requirements. The 306-008-400-102 specifically addresses needs for dual-row connectivity within this established product family, providing a standardized solution for vertical or panel mount implementations depending on the exact housing variant.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching 16-position dual-row layouts. Verify compatibility with existing tooling and PCB footprints when considering alternative manufacturers. Ensure that any replacement maintains the same 3.96 mm pitch and 0.062 inch board thickness acceptance to guarantee proper mechanical fit.
