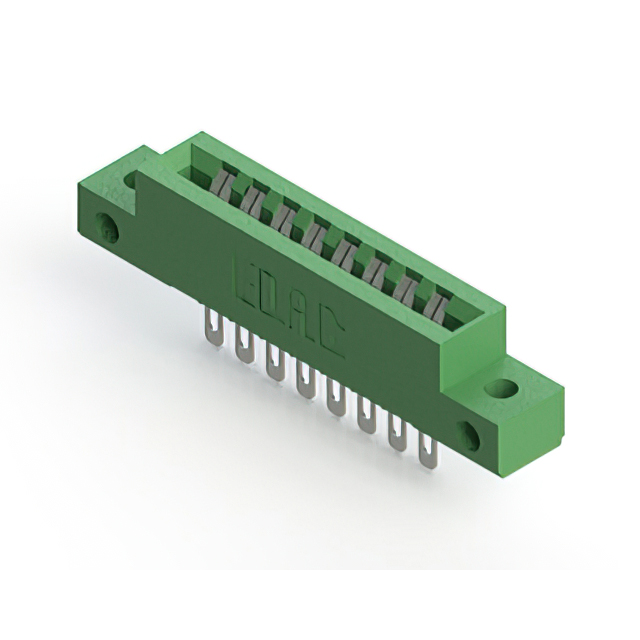

306-008-400-112

$7.60

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:f6972d50c97b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-008-400-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-008-400-112

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-008-400-112

306-008-400-112

Edgeboard Connectors Overview

The EDAC Inc. 306-008-400-112 is a card edge connector from the 306 series, designed for vertical through-hole mounting. It features a dual female configuration with 16 positions arranged in two rows of eight contacts. The connector utilizes a 0.156-inch (3.96 mm) centerline spacing and accepts board thicknesses ranging from 0.054 to 0.070 inches. Contacts are made of copper alloy with gold plating, housed in a green thermoplastic polyester insulator. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

Dual female contact configuration for reliable edgeboard engagement
Vertical through-hole termination for secure PCB installation
Gold-plated copper alloy contacts for corrosion resistance
Green thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify that the specific suffix '112' corresponds to the green insulator variant and standard lead time. Confirm compatibility with target board thickness specifications before ordering. Ensure procurement channels provide original manufacturer documentation to validate RoHS3 compliance status. Cross-reference part numbers against official EDAC databases to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 16-position interface with 0.156-inch spacing is required. The vertical orientation suits applications where space above the board is limited. Verify that the operating temperature range meets environmental demands. Ensure mating edgeboards align with the specified contact pitch and board thickness constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and spacing options. The 306-008-400-112 specifically addresses needs for moderate-density connections in industrial environments. It complements other EDAC products by providing a robust, solder-terminal solution for vertical mounting configurations.
