306-008-420-101

Edgeboard Connectors Overview

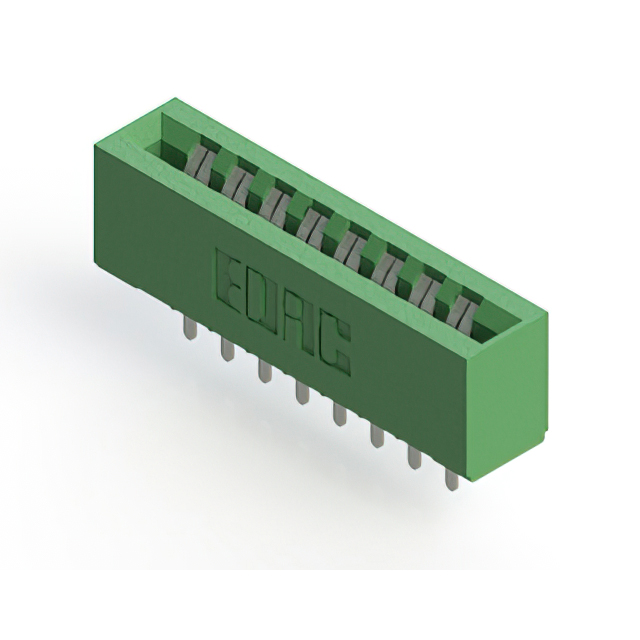

The EDAC Inc. 306-008-420-101 is a standard card edge connector receptacle designed for panel mount installation with a vertical orientation. It features 16 positions arranged in a dual-edge configuration, utilizing a 0.156-inch (3.96 mm) pitch. The connector accepts board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Contacts are constructed from copper alloy with a tin plating finish and employ a solder pin termination method. The housing is made of green thermoplastic polyester, supporting a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Panel mount design with vertical alignment for stable integration
• Thermoplastic polyester insulation providing structural integrity

Edgeboard Connectors Applications

• Industrial control system interface connections
• Electronic equipment backplane interconnects
• General-purpose circuit board mounting applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct contact plating and flange characteristics. Confirm that the required board thickness falls within the specified 1.37 mm to 1.78 mm range. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS3 requirements if applicable to the target assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel-mounted vertical applications. Consider the tin-plated contacts for general corrosion resistance and cost-effective soldering. Evaluate the 5 A current rating against the intended load requirements. Verify compatibility with the PCB edge guide dimensions and available mounting space.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options to accommodate different density requirements. Components in this family typically utilize thermoplastic polyester housings and support through-hole solder termination for reliable mechanical and electrical performance in industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants such as 306-010-421-101 or 306-043-421-104 only if position count and pitch specifications match exactly. Verify that any substitute maintains the same dual-edge female configuration and panel mount orientation to ensure mechanical compatibility.
