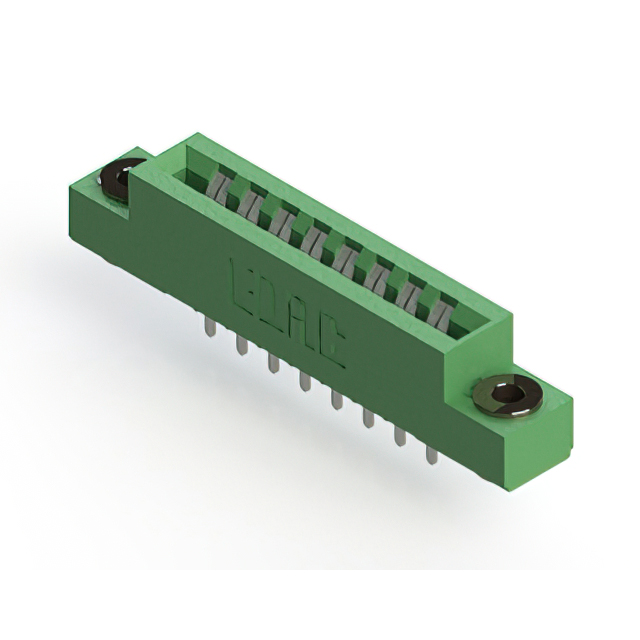

306-008-420-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-008-420-103
- Description：CONN EDGE DUAL FMALE 16POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-008-420-103
Edgeboard Connectors Overview
The EDAC Inc. 306-008-420-103 is a standard card edge connector receptacle designed for vertical panel mount installation. It features an 8-position dual female configuration with a 3.96 mm (0.156 inch) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This component utilizes a solder pin termination method and is rated for a current of 5 A. The housing is made of thermoplastic polyester, providing structural integrity for industrial applications.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure board insertion
- Vertical panel mount design with solder pin termination
- Gold-plated copper alloy contacts for corrosion resistance
- Thermoplastic polyester housing for durability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Communication equipment backplanes
- Consumer electronics module connections
- Medical device circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact count, pitch, and termination style. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and compliance status.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, dual-sided card edge connection is required for vertical panel mounting. The 3.96 mm pitch and 8-position count suit compact interface designs. Verify that the 5 A current rating and gold contact finish meet the electrical performance needs of the application environment.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose electronic interconnects. The 306 series is characterized by its robust thermoplastic construction and reliable solder pin termination, widely used in industrial and commercial electronics.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify mechanical dimensions and electrical ratings match the original design requirements before substituting.
