306-008-420-104

Edgeboard Connectors Overview

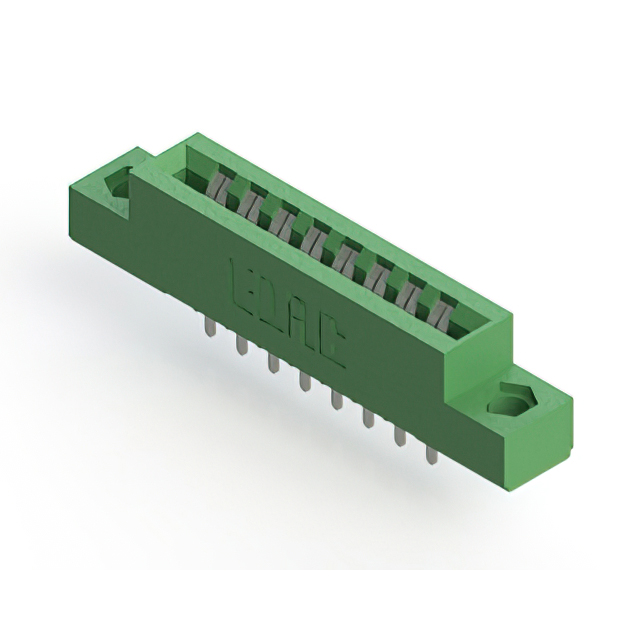

The EDAC Inc. 306-008-420-104 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 16 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches), falling within the range of 1.37 mm to 1.78 mm. Constructed with copper alloy contacts finished in tin plating, it utilizes a thermoplastic polyester insulator body. The unit is rated for 5 A current and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Low-profile insulator body design for space-constrained panel mounting
• Thermoplastic polyester housing providing thermal stability

Edgeboard Connectors Applications

• Industrial control panel interconnections
• Vertical PCB mounting systems
• General-purpose electronic equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 306 Series Ordering Guide to ensure compatibility with required contact plating and board thickness specifications. Confirm that the tin-plated variant matches the application's environmental requirements. Cross-reference the manufacturer part number with distributor catalogs to validate current availability status and lead times prior to procurement planning.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with 3.96 mm pitch is required for vertical panel installation. Ensure the mating PCB thickness aligns with the specified 1.37 mm to 1.78 mm acceptance range. Consider the tin contact finish for general-purpose applications where gold plating is not strictly necessary for corrosion resistance or low-contact impedance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse industrial and commercial electronics. The 306-008-420-104 specifically addresses needs for 16-position dual-edge connections with a 0.156-inch spacing, fitting into the broader portfolio of EDAC's interconnect solutions.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with identical mechanical dimensions and electrical ratings. Verify equivalent parts from other manufacturers by matching the 3.96 mm pitch, 16-position count, and dual-edge female interface specifications.
