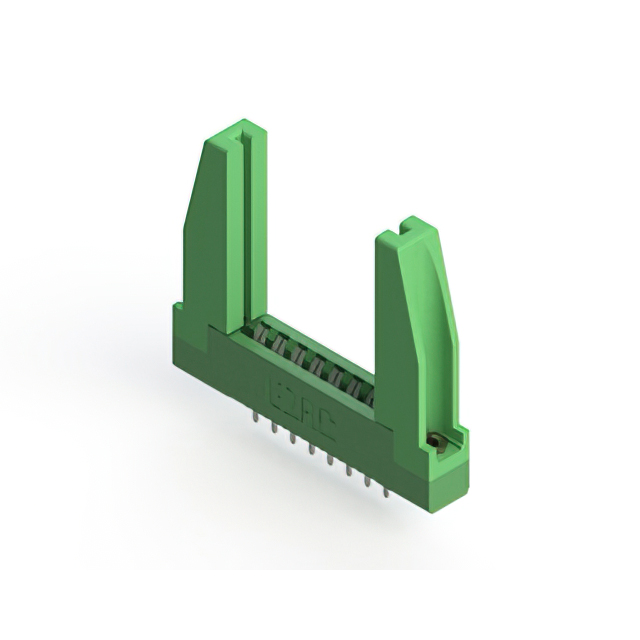

306-008-420-178

$8.93

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:0ab172ade017 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-008-420-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-008-420-178

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-008-420-178

306-008-420-178

Edgeboard Connectors Overview

The EDAC Inc. 306-008-420-178 is a standard card edge connector receptacle featuring 15 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and supports a 5 A current rating. Designed for through-hole straight mounting, it accommodates a board thickness of 1.57 mm. The housing is constructed from thermoplastic polyester.

Edgeboard Connectors Feature Summary

Gold-plated contacts ensure reliable signal transmission
Thermoplastic polyester housing provides structural integrity
Through-hole termination method secures PCB attachment

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific position count against project requirements, as conflicting data exists between 15 and 16 positions in available sources. Confirm RoHS compliance status directly with the manufacturer or authorized distributor prior to ordering. Ensure the selected variant matches the required contact plating and termination style for the target assembly process.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch card edge interface is required. The straight through-hole design suits vertical panel or board-to-board connections. Verify that the 1.57 mm board thickness compatibility aligns with the target PCB specifications. Consider the 5 A current rating for power distribution needs within the circuit design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series is characterized by a 3.96 mm (0.156 inch) contact spacing. Components in this family are designed for high-reliability applications in harsh environments, offering durable mechanical performance and consistent electrical characteristics across various industrial sectors.
