306-008-500-102

Edgeboard Connectors Overview

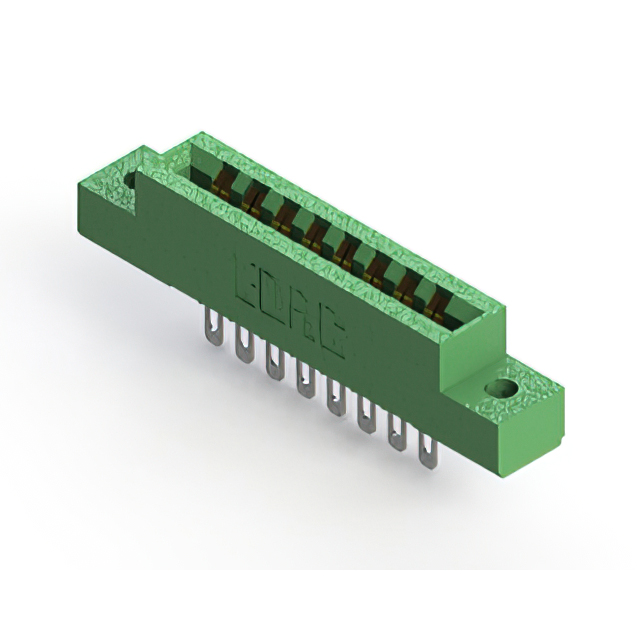

The EDAC Inc. 306-008-500-102 is a standard card edge connector receptacle featuring an 8-position, single-row configuration with a 3.96 mm (0.156 inch) pitch. Designed for through-hole termination, it accommodates printed circuit boards with a thickness of 1.57 mm. The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. Rated for 5 A current at temperatures ranging from -40°C to +105°C, this component utilizes thermoplastic polyester insulation and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row receptacle design for centerline board mounting
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material composition. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm. Confirm RoHS compliance status directly with the supplier documentation prior to procurement integration.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 8-position connection is required for 1.57 mm thick cards. The 3.96 mm pitch dictates compatible edge card dimensions. Verify that the 5 A current rating and -40°C to +105°C operating range align with the target application's electrical and thermal requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and row configurations for board-to-board or board-to-backplane applications. The 306-008-500-102 specifically addresses low-pin-count, single-row interface needs within this product family.

Edgeboard Connectors Replacement Considerations

Cross-reference the 306 series ordering guide for alternative positions or row configurations. No direct public substitute part numbers are confirmed in the provided documentation.
