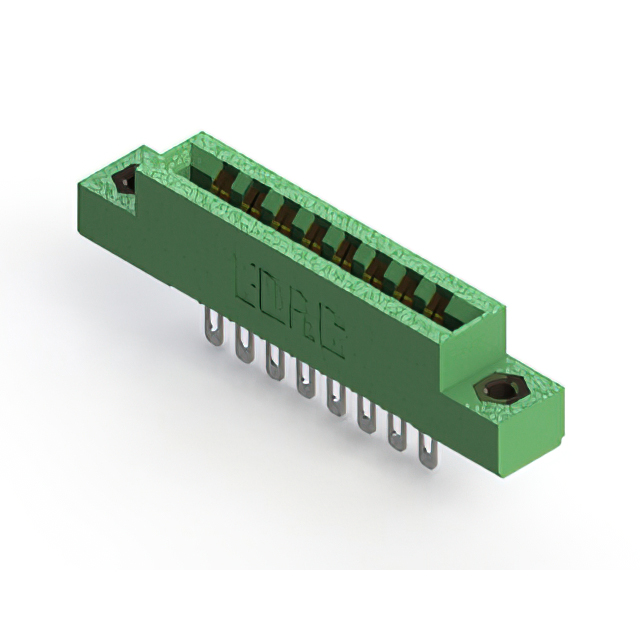

306-008-500-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-008-500-107
- Description：CONN EDGE DUAL FMALE 16POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-008-500-107
Edgeboard Connectors Overview
The EDAC Inc. model 306-008-500-107 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features an 8-position configuration with a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Rated for 5 A current, it supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Vertical panel mount design for secure structural integration
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Automotive electronics assemblies
- Communication equipment hardware
- Medical device circuitry
Edgeboard Connectors Procurement Notes
Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB dimensions and panel cutouts before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents.
Edgeboard Connectors Selection Notes
Select this component when a vertical, panel-mount interface is required for double-sided card edges. The 3.96 mm pitch suits applications needing wider spacing for higher voltage isolation. Verify that the 1.57 mm board thickness aligns with the system's mechanical constraints and mating requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles, providing versatile solutions for printed circuit board interconnections in demanding environments.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series ordering guide for direct substitutes with different pin counts or mounting angles. Cross-reference compatible parts from other manufacturers only if mechanical and electrical parameters match exactly.
