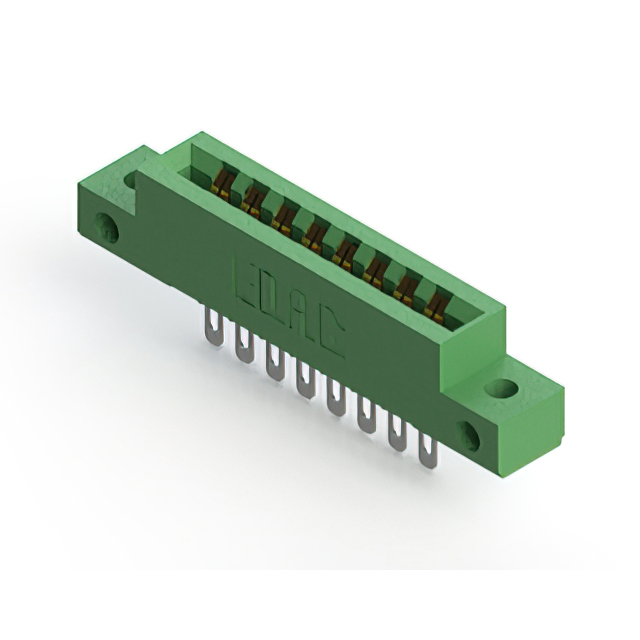

306-008-500-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-008-500-112
- Description：CONN EDGE DUAL FMALE 16POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-008-500-112
Edgeboard Connectors Overview
The EDAC 306-008-500-112 is a standard card edge connector from the 306 series. It features an 8-position configuration with a 3.96 mm pitch and supports a 1.57 mm board thickness. The connector utilizes gold-plated copper alloy contacts housed in a thermoplastic polyester shell. Designed for vertical panel mount installation, it offers a current rating of 3 A and an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Gold-plated copper alloy contacts ensure reliable electrical connectivity
- Thermoplastic polyester housing provides structural stability
- Vertical panel mount design facilitates secure integration
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement devices
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm compatibility with your application requirements. Ensure that the thermal and mechanical specifications align with your system's operational environment. Cross-reference datasheets for accurate dimensional drawings and mounting details before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component based on its 3.96 mm pitch and 8-position layout suitable for specific board interfaces. Consider the vertical panel mount style and thermoplastic polyester construction for environmental durability. Confirm that the 3 A current rating and temperature range meet the electrical demands of the target application.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series, designed for standard card edge applications. It serves as a reliable interface solution for connecting printed circuit boards in various electronic assemblies. The series emphasizes robust construction and consistent performance across diverse industrial environments.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement matches the original pitch, position count, and mounting style to maintain system integrity.
Explore related parts through Connectors, Interconnects, all product categories, ChipApex homepage.
