306-008-500-158

Edgeboard Connectors Overview

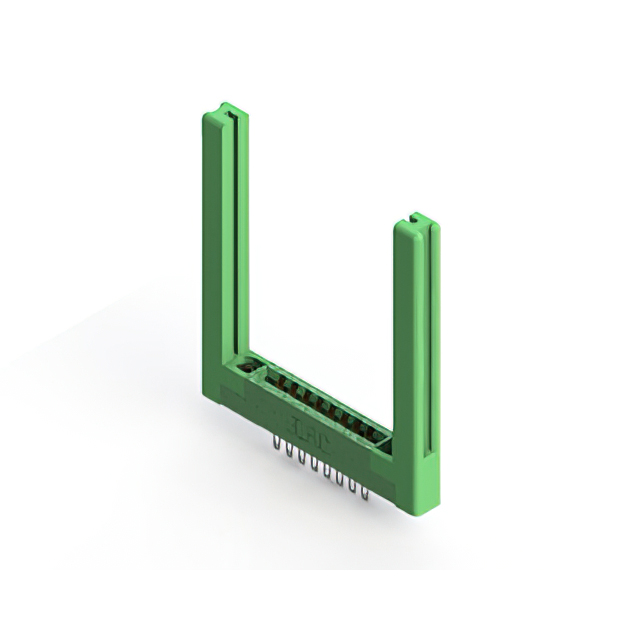

The EDAC Inc. 306-008-500-158 is a dual-edge female card edge connector from the 306 Series, designed for panel mounting. It features 16 positions with a 0.156-inch (3.96mm) pitch across two rows. The contacts are made of copper alloy with gold plating and utilize a cantilever design. The housing is green thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever spring contacts
• Gold-plated copper alloy terminals for reliable signal transmission
• Panel mount installation with flush-mount flange characteristics

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact finish and insulation material specifications. Confirm compliance with RoHS3 directives and REACH regulations before integration. Ensure the selected variant aligns with the intended thermal operating range and mechanical retention requirements for the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection is required for non-specified card edges. The 0.156-inch pitch accommodates standard industrial board layouts. Consider the cantilever contact style for ease of insertion and removal during maintenance or module replacement cycles in fixed installations.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which specializes in high-reliability card edge connectors. The series offers various position counts and mounting styles to support diverse electronic enclosure designs. The 306-008-500-158 specifically addresses applications needing robust dual-edge connectivity with standardized spacing.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same family include the 306-009-500-104, which shares identical electrical and mechanical parameters but provides 18 positions instead of 16. Verify pin count compatibility before substitution.
