306-008-520-107

Edgeboard Connectors Overview

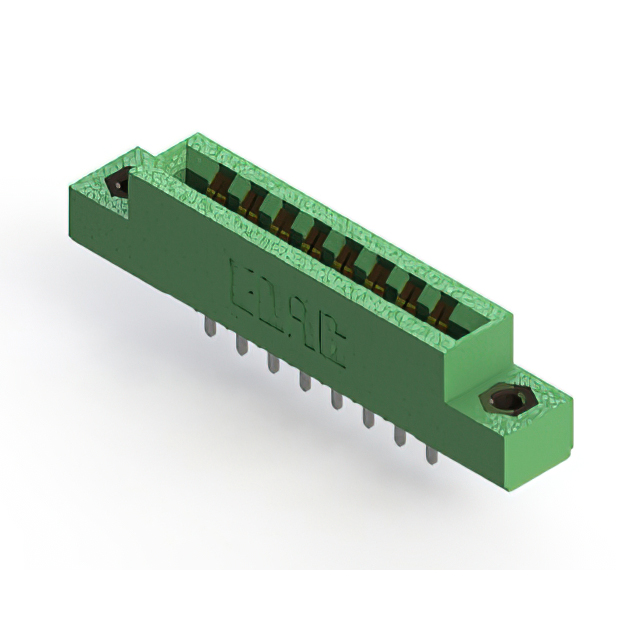

The EDAC Inc. part number 306-008-520-107 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. This single-row header features 8 positions with a pitch of 3.96 mm (0.156 inches). It utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and low contact resistance. The insulator housing is constructed from green thermoplastic material, providing durability and electrical insulation. The connector supports a maximum operating temperature of +105°C and a minimum of -40°C, ensuring stability across various environmental conditions.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure board integration
• Gold-plated copper alloy contacts for enhanced conductivity
• Single central row configuration with 8 positions
• Thermoplastic insulator housing for structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness, flange features, and compliance status such as RoHS directives. Ensure the selected variant matches the required PCB thickness and mounting style specifications for your assembly process. Cross-reference the Mouser or DigiKey part numbers provided in distributor listings to avoid discrepancies in component sourcing.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, vertical interface is required for 8-position card edge applications. The 3.96 mm pitch accommodates standard board layouts while the gold plating offers superior corrosion resistance compared to tin variants. Consider the thermoplastic housing properties for thermal management needs within the specified -40°C to +105°C operational range during system design.

Edgeboard Connectors Part Context

This component belongs to EDAC's 306 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and mounting styles to support diverse connectivity requirements. As a header type, it interfaces with dual-edge cards, providing a stable mechanical and electrical connection in high-vibration environments typical of professional hardware deployments.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC part numbers within the same 306 series that share identical pin counts, pitch dimensions, and mounting configurations. Verify that alternative options maintain the same gold plating specification and thermal rating to ensure functional equivalence without redesigning the host PCB footprint.
