306-008-520-168

Edgeboard Connectors Overview

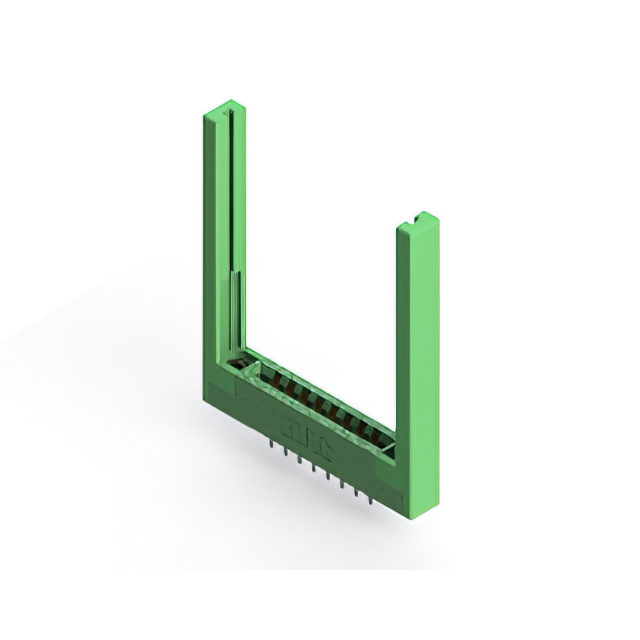

The EDAC Inc. part number 306-008-520-168 is a standard card edge connector designed for vertical panel mounting applications. It features a single centerline row with 8 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The operating temperature range spans from -40°C to +105°C. The housing is constructed from thermoplastic material, and the contacts are made of copper alloy with gold plating.

Edgeboard Connectors Feature Summary

• Single centerline row configuration with 8 positions
• Vertical panel mount installation style
• Gold-plated copper alloy contacts
• Thermoplastic insulator body

Edgeboard Connectors Applications

• Medical interconnect solutions
• Ambulance equipment connections
• Medical room installations
• Ventilator systems
• CPAP machines

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct pin count, termination type, and plating specifications. Confirm that the required PCB thickness matches the component's acceptance criteria before procurement. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the vertical panel mount form factor aligns with the mechanical design constraints of the target enclosure.

Edgeboard Connectors Selection Notes

Select this component when a low-profile single-row card edge interface is required for panel-mounted assemblies. The 0.156-inch pitch accommodates standard board layouts while maintaining robust electrical performance. Verify that the 5 A current rating meets the signal or power requirements of the connected circuitry. Consider the thermoplastic housing material for general-purpose industrial or medical environments where high-temperature stability up to 105°C is necessary.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge connectors with 0.156-inch contact spacing. The series offers various configurations including different row counts, termination styles, and mounting options. The 306 series is widely utilized in industries requiring reliable interconnects for edge-board applications, such as medical devices and industrial control systems.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
