306-008-520-178

Edgeboard Connectors Overview

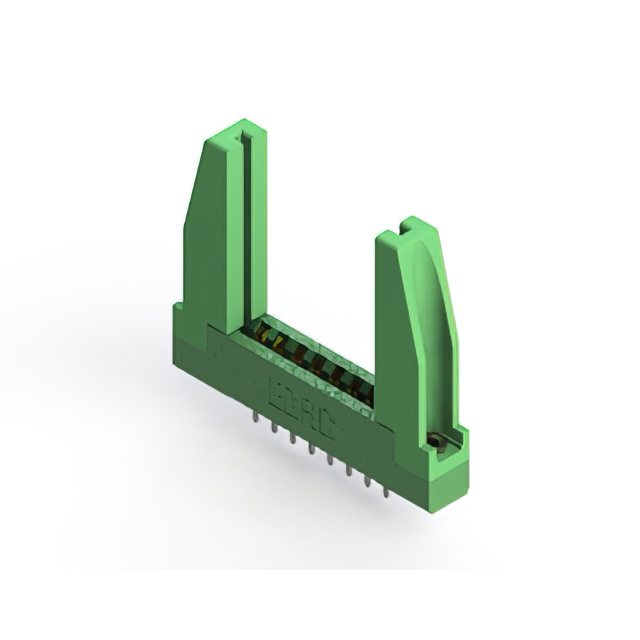

The EDAC Inc. 306-008-520-178 is a standard card edge connector receptacle featuring 8 positions in a single row with a 3.96 mm pitch. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It accommodates printed circuit boards with a nominal thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Single centerline row configuration accepting .062 inch nominal PCB thickness
• Low profile insulator body construction
• Gold contact plating for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Communication equipment utilizing standard card edge interfaces
• Consumer electronics assemblies needing high-reliability board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to ensure correct pin count and termination style. Confirm RoHS compliance status directly with the supplier documentation prior to procurement. Check regional availability restrictions as distribution may vary by location.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 8-position interface is required with a 3.96 mm spacing. Ensure the target PCB thickness aligns with the 1.57 mm design specification. Consider the through-hole mounting style and straight orientation for panel installation requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles designed for general-purpose electronic applications. The 306 series is characterized by its durable thermoplastic housing and consistent contact performance across different industry sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing pin counts or mounting angles. Verify that any alternative maintains the 3.96 mm pitch and compatible PCB thickness specifications.
