306-009-400-101

Edgeboard Connectors Overview

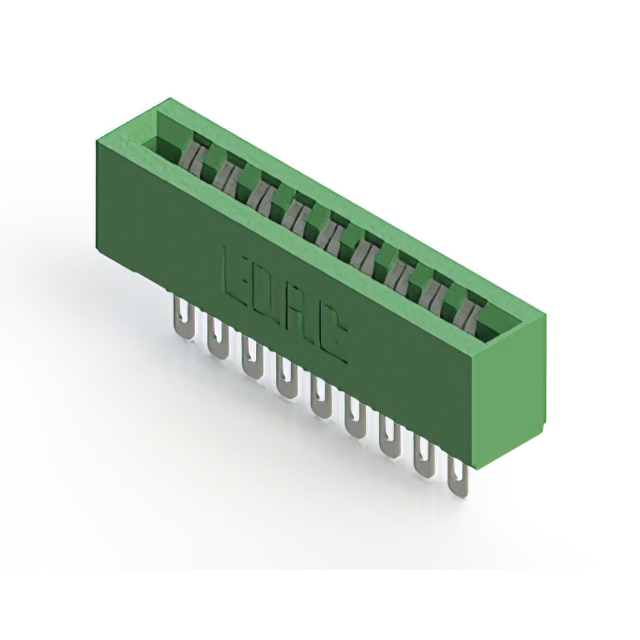

The EDAC Inc. part number 306-009-400-101 is a standard card edge connector receptacle from the 306 series. It features an 18-position configuration with dual female contacts arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and is designed for panel mount installation at a vertical angle. The contacts are tin-plated copper alloy, and the housing is constructed from thermoplastic polyester. This component supports board thicknesses of 1.57 mm and employs solder pin termination.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge mating
• Vertical panel mount orientation for stable structural integration
• Tin-plated contacts to ensure reliable electrical conductivity

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• General purpose electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and housing material variations. Ensure the selected variant matches the required board thickness and current rating specifications for the target application environment. Cross-reference the official EDAC documentation to validate compatibility with existing PCB layouts and mechanical constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch dual-row card edge connector is required for vertical panel mounting applications. The 18-position count suits moderate density interface needs. Verify that the tin-plated contact finish aligns with environmental requirements and mating cycle expectations. Confirm that the thermoplastic polyester housing provides adequate insulation resistance for the operating voltage levels present in the design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors with a 3.96 mm contact spacing. The series offers various position counts and mounting styles to accommodate diverse electronic assembly requirements. The 306-009-400-101 variant specifically addresses applications needing a robust dual-row receptacle with vertical panel mounting capabilities for reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official substitution guide for direct replacements within the 306 series. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers. No public substitute part numbers are confirmed in available data.
