306-009-400-102

Edgeboard Connectors Overview

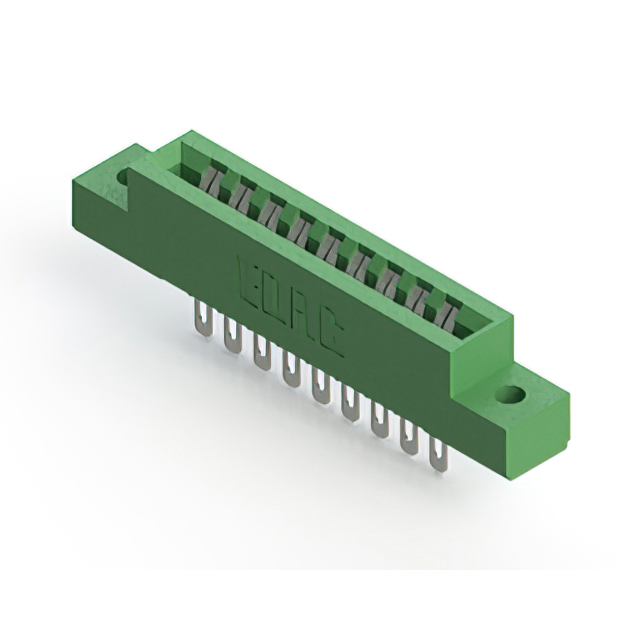

The EDAC Inc. 306-009-400-102 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 18 positions and a centerline spacing of 0.156 inches (3.96 mm). The connector supports a board thickness of 0.054 to 0.070 inches (1.37 to 1.78 mm) and utilizes gold-plated copper alloy contacts housed in a green thermoplastic body.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure edgeboard mating
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring vertical interconnection
• Industrial control systems utilizing standard card edge boards
• Communication equipment infrastructure modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and material variants. Confirm that the target application board thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper mechanical retention. Check current supply chain status as lead times may vary based on manufacturer production schedules.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for 18-position edgeboards with 3.96 mm pitch. Ensure compatibility with the specified board thickness range. Consider the 306 series environmental ratings if operating in conditions exceeding standard commercial temperatures.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, a line of high-reliability card edge connectors. The series is characterized by robust thermoplastic housings and precise contact alignment, suitable for demanding industrial and commercial environments where consistent signal integrity is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 306-009-400-101 or 306-009-400-103, provided they match the exact pin count and mounting style. Verify dimensional drawings against existing PCB layouts before substitution.
