306-009-400-104

Edgeboard Connectors Overview

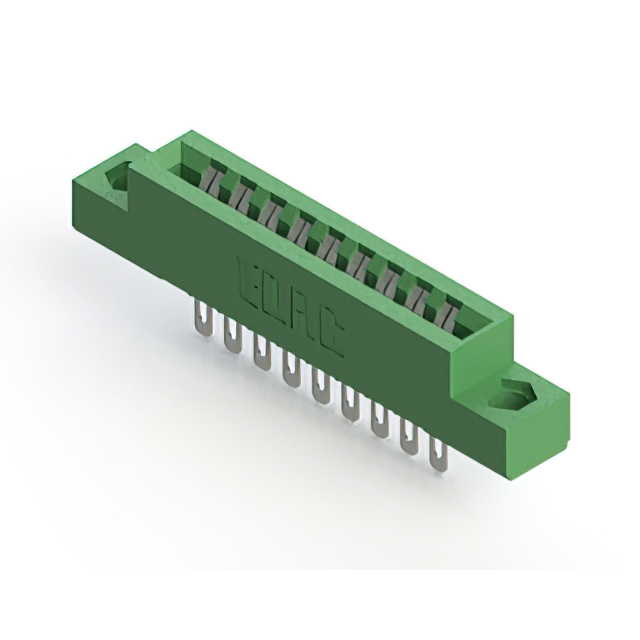

The EDAC 306-009-400-104 is a standard card edge connector receptacle featuring 18 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes dual-edge female contacts with tin plating and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body and supports panel mount installation in a vertical orientation. Designed for reliable signal transmission, it operates within a current rating of 5A and features copper alloy contacts housed in thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Accepts 0.062 inch nominal thickness PCBs
• Low profile insulator body design
• Dual edge female contact configuration

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating type, as variations exist within the series. Confirm that the required board thickness matches the 0.062-inch specification. Ensure the panel mounting style aligns with the mechanical constraints of the target enclosure. Check regional availability through authorized distributors due to potential supply limitations.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge card interface is required with a 3.96mm pitch. The tin-plated contacts offer cost-effective conductivity suitable for general-purpose applications. Consider the vertical panel mount form factor for space-constrained enclosures. Validate that the 18-position count meets the circuit requirements before finalizing the selection.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series provides various position counts and contact configurations to support diverse electronic interconnection needs. The 306-009 variant specifically addresses applications requiring a compact, low-profile solution for double-sided edge cards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 306-series variants such as 306-009-400-168 if different contact plating or tail specifications are required. Verify mechanical compatibility with existing PCB layouts before substituting.
