306-009-400-112

Edgeboard Connectors Overview

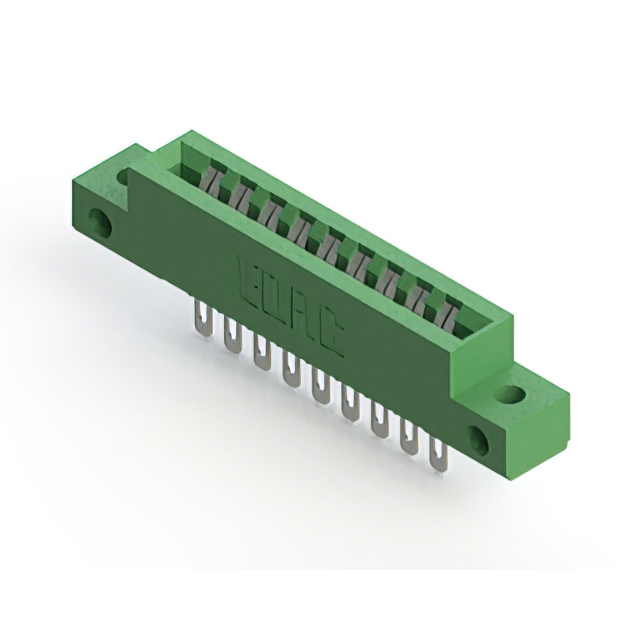

The EDAC Inc. part number 306-009-400-112 is a dual-edge female card edge connector designed for vertical panel mount applications. It features an 18-position configuration with a contact pitch of 0.156 inches (3.96 mm). The contacts are tin-plated copper alloy, and the housing is green polyphenylene sulfide (PPS). This component supports standard board thicknesses and provides reliable electrical interconnection for single-sided or double-sided circuit boards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Vertical panel mount installation style for structural stability
• Tin-plated copper alloy contacts for corrosion resistance
• Green polyphenylene sulfide (PPS) insulator housing

Edgeboard Connectors Applications

• Industrial control systems requiring robust I/O connections
• Telecommunications equipment backplanes
• Consumer electronics assembly with modular board designs
• Medical device instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with your board stack-up and mounting requirements. Confirm that the tin plating specification meets your environmental constraints, as gold-plated variants exist within the same series. Cross-reference the dimensional drawing against your PCB layout to guarantee proper fitment during assembly.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface is required for vertical mounting in space-constrained panels. The 0.156-inch pitch accommodates standard trace widths, while the PPS material offers thermal stability. Ensure the application does not require high-frequency shielding, as this model lacks integrated EMI protection features found in other series.

Edgeboard Connectors Part Context

This component belongs to EDAC's standard card edge connector portfolio, which emphasizes durability and cost-effective manufacturing. The 306 series specifically targets applications needing reliable mechanical retention without complex locking mechanisms. It serves as a foundational interconnect solution for general-purpose electronic assemblies across various industrial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC dual-edge connectors with matching 18-position counts and 0.156-inch pitch. Verify pinout orientation and housing color coding if visual identification is critical. Alternative manufacturers should match the vertical panel mount profile and tin-plated contact specifications.
