306-009-420-102

Edgeboard Connectors Overview

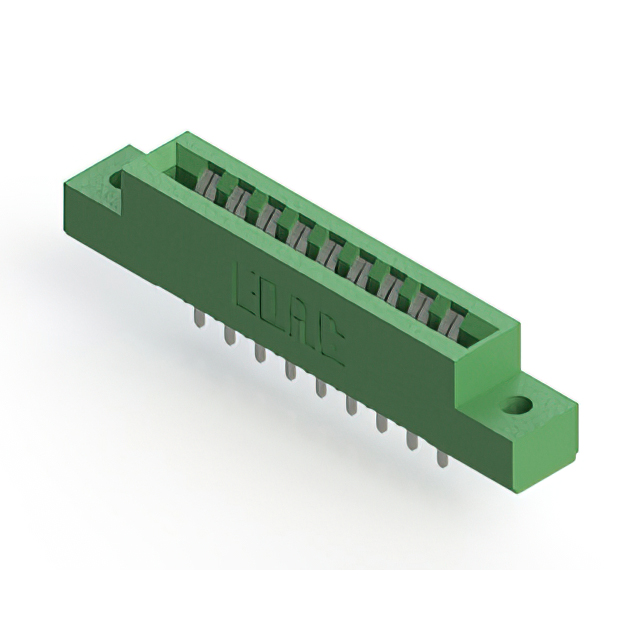

The EDAC Inc. 306-009-420-102 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features an 18-position configuration with a 3.96 mm (0.156 inch) pitch and supports a maximum operating temperature of +105°C. The connector utilizes a copper alloy contact material with a tin plating finish to ensure reliable signal transmission. Designed for panel mount installation at a vertical angle, it accommodates PCB thicknesses ranging from 1.37 mm to 1.78 mm. The housing is constructed from green thermoplastic polyester, providing robust insulation and mechanical stability for industrial interconnect requirements.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for non-specified card edge boards
• Vertical panel mount installation style for secure structural attachment
• Thermoplastic polyester housing with tin-plated copper alloy contacts

Edgeboard Connectors Applications

• Industrial control system interconnections
• Panel-mounted electronic module interfaces
• General-purpose printed circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, contact plating, and housing color specifications. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm before procurement. Confirm that the vertical panel mount orientation aligns with the mechanical assembly constraints of the final enclosure design.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 1.57 mm thick board within the specified thermal limits. The 3.96 mm pitch dictates the trace spacing on the mating PCB. Verify that the tin plating meets the environmental corrosion resistance requirements for the intended operational environment compared to gold-plated alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which offers a range of standard card edge connectors. The series provides various position counts and mounting styles to accommodate different interface densities. The 306-009-420-102 specifically addresses the need for a mid-density dual-edge connector with a standardized 0.156-inch centerline spacing.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing position counts or plating options. Cross-reference compatible parts from other manufacturers offering identical 3.96 mm pitch dual-edge specifications.
