306-009-420-168

Edgeboard Connectors Overview

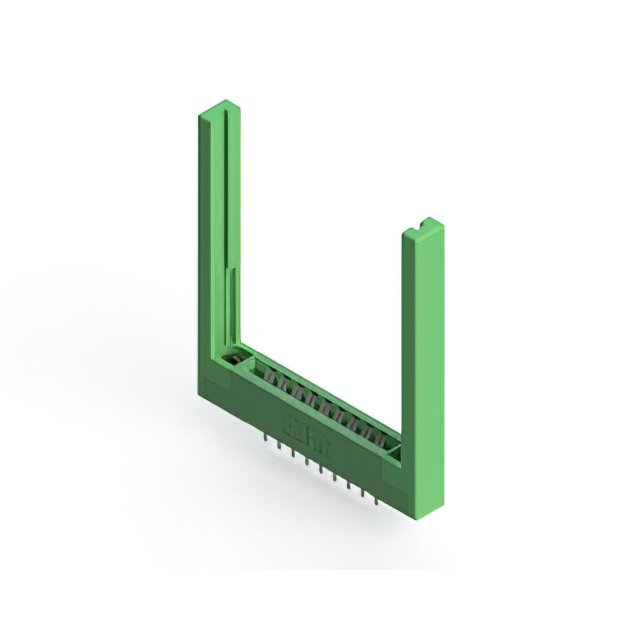

The EDAC 306-009-420-168 is a standard card edge connector receptacle designed for panel mount applications. It features 18 positions arranged in two rows with a 3.96 mm pitch. The component accepts printed circuit boards with a nominal thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 5 A current. The insulator body is constructed from thermoplastic polyester, providing vertical orientation and solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Thermoplastic polyester insulator body offers structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device signal transmission modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating material and terminal style, as variations exist within the series. Ensure the selected variant matches the required PCB thickness and mounting orientation. Cross-reference the manufacturer datasheet for precise mechanical dimensions and environmental ratings before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, low-profile interface is required for 1.57 mm thick boards. Verify that the 3.96 mm pitch aligns with the system layout constraints. Confirm that the panel mount style suits the enclosure design and that the 5 A rating meets the application's electrical load requirements without derating.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which provides standard card edge connectors for various industrial and commercial applications. The series offers multiple position counts and mounting options, allowing designers to scale connectivity solutions while maintaining consistent mechanical interfaces and contact spacing standards across different product lines.

Edgeboard Connectors Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Compatible alternatives may include other EDAC 306 series variants with matching pitch and position counts, provided they support the same PCB thickness and mounting style. Verify mechanical compatibility before substitution.
