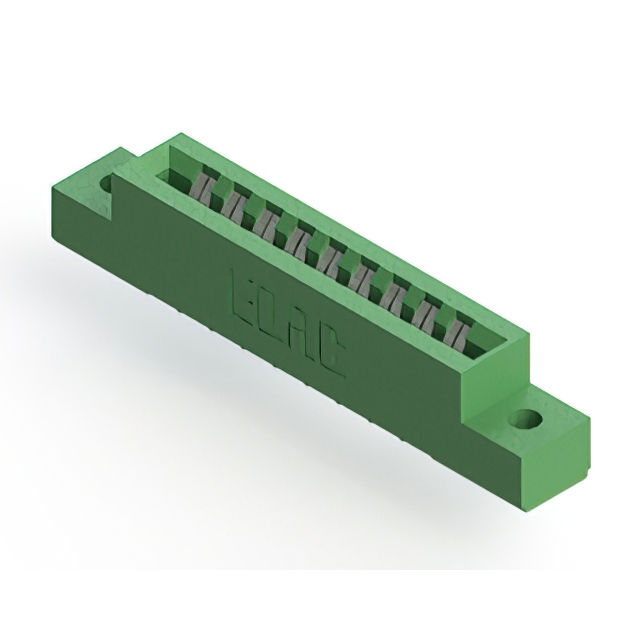

306-009-421-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-009-421-102
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-009-421-102
Edgeboard Connectors Overview
The EDAC Inc. model 306-009-421-102 is a standard card edge connector from the 306 series, designed for panel mount applications. It features an 18-position female configuration with dual-edge contact engagement and a 3.96 mm (0.156 inch) pitch. The unit utilizes copper alloy contacts with tin plating and operates within a temperature range of -40°C to +105°C. Constructed with a thermoplastic polyester insulator, it accommodates board thicknesses between 1.37 mm and 1.78 mm.
Edgeboard Connectors Feature Summary
- Dual-edge female contact design for secure board insertion
- Tin-plated copper alloy contacts for reliable conductivity
- Thermoplastic polyester insulator body for durability
Edgeboard Connectors Applications
- Panel-mounted electronic assemblies
- Industrial control system interconnects
- General-purpose circuit board connections
Edgeboard Connectors Procurement Notes
Verify component authenticity through authorized EDAC channels or certified distributors. Confirm that the specific part number matches project requirements regarding contact count, pitch, and termination style. Ensure compliance with applicable environmental regulations such as RoHS standards before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this connector when a dual-edge female interface is required for vertical panel mounting. The 3.96 mm pitch and 18-position layout suit specific board dimensions. Tin plating offers cost-effective conductivity, while the specified operating temperature range supports diverse industrial environments.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and configurations for different board integration needs. The 306-009-421-102 specifically addresses applications requiring dual-edge engagement with a fixed 18-position footprint.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers within the 306 series. Ensure any replacement maintains identical pitch, position count, and termination specifications.
