306-009-421-108

Edgeboard Connectors Overview

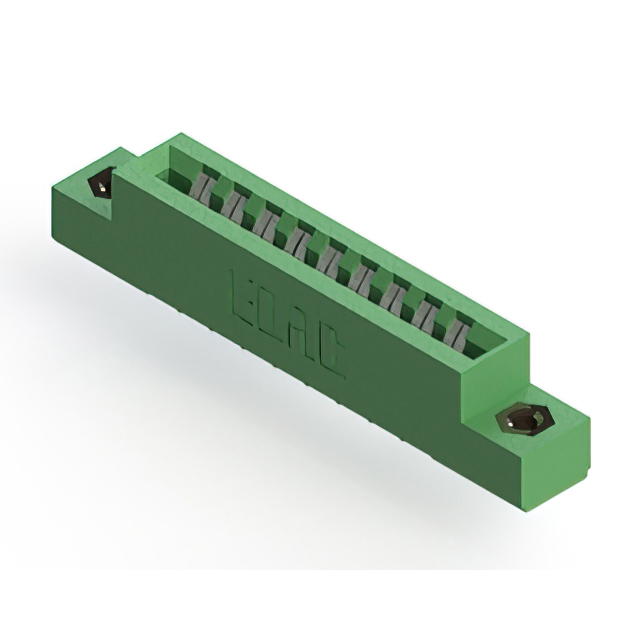

The EDAC Inc. 306-009-421-108 is a standard card edge connector receptacle featuring 18 positions with a 3.96 mm pitch. Designed for panel mount installation at a vertical angle, it utilizes solder pin termination and tin-plated copper alloy contacts rated for 5 A current. The insulator body is constructed from thermoplastic polyester in green, accommodating printed circuit boards with a thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Accepts nominal 1.57 mm thick PCBs
• Low profile insulator body design
• Single centerline row contact configuration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications. Ensure the selected variant matches the required board thickness tolerance and mounting style. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row card edge interface is required. Verify that the 3.96 mm pitch aligns with the target PCB layout. Ensure the vertical panel mount orientation fits within the mechanical enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors. The series offers various position counts and mounting options designed for reliable interconnection in compact electronic applications requiring robust mechanical stability.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for compatible substitutes. Verify identical pitch, position count, and termination type when evaluating alternative part numbers.
