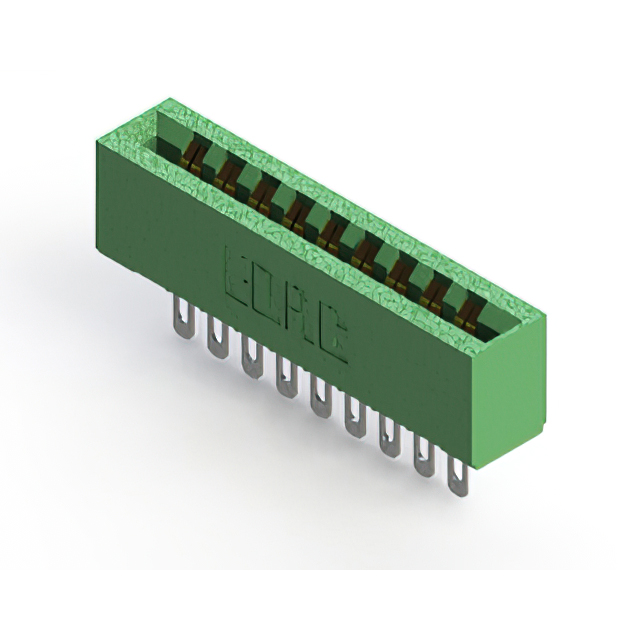

306-009-500-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-009-500-101
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-009-500-101
Edgeboard Connectors Overview
The EDAC Inc. part number 306-009-500-101 is a standard card edge connector receptacle designed for dual female contact configurations. It features an 18-position layout with a contact spacing of 0.156 inches (3.96 mm). The unit utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. Rated for 5 A current, it supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure board insertion
- Gold-plated copper alloy contacts ensure reliable conductivity
- Thermoplastic polyester insulator body provides structural stability
Edgeboard Connectors Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Consumer electronics module interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating specifications, and termination style. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference datasheet revisions to confirm material composition and environmental ratings match project requirements.
Edgeboard Connectors Selection Notes
Select this component when a dual-row female interface with 3.96 mm pitch is required. Confirm that the 1.57 mm board thickness tolerance aligns with the design. Verify that the 5 A current rating and operating temperature range meet the application's electrical and thermal demands without derating.
Edgeboard Connectors Part Context
This connector belongs to the EDAC standard card edge series, focusing on reliable vertical or straight mounting solutions. It serves as a critical interface point in modular electronic systems, bridging printed circuit boards with external connectors or backplanes through standardized mechanical and electrical parameters.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match the precise 0.156 inch spacing or 1.57 mm board thickness tolerance. Ensure any substitute maintains the dual female gender and gold plating specification.
