306-009-500-112

Edgeboard Connectors Overview

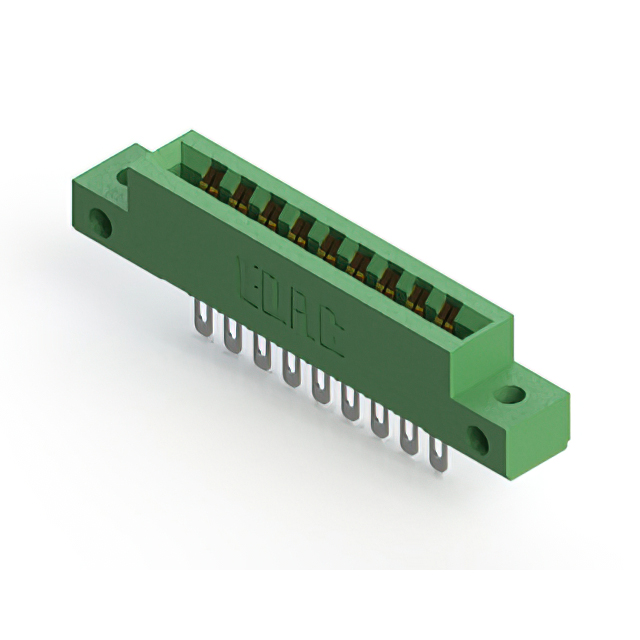

The EDAC Inc. model 306-009-500-112 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 18 positions arranged in a single centerline row. The contact spacing is 0.156 inches (3.96 mm), and the unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are gold-plated copper alloy, housed within a green thermoplastic polyester insulator body. This low-profile design ensures reliable electrical connections for board-to-panel interfaces.

Edgeboard Connectors Feature Summary

• Vertical panel mount installation style
• Dual female contact configuration
• Gold-plated copper alloy contacts
• Low profile thermoplastic polyester insulator

Edgeboard Connectors Applications

• Board-to-panel interconnects
• Industrial control systems
• Telecommunications equipment
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact finish and insulation color, as variations exist within the series. Confirm that the target PCB thickness matches the 0.062-inch specification to ensure proper mechanical retention. Check for RoHS compliance documentation if environmental regulations apply to the end product. Ensure the panel cutout dimensions align with the connector's mounting requirements.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for 18-position card edge applications. The 3.96 mm pitch accommodates standard board layouts while maintaining a compact footprint. Consider the gold plating for corrosion resistance and reliable signal transmission. Verify that the dual female configuration meets the mating card requirements before finalizing the design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles, including panel and PCB mount options. The 306 series is characterized by its robust construction and compatibility with standard PC board thicknesses, making it suitable for a wide range of electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pin counts and pitch, such as the 306-009-500-104 or 306-009-500-112 variants with different suffixes indicating minor material or packaging differences. Cross-series replacements require verification of pitch, board thickness, and mounting style compatibility.
