Edgeboard Connectors Overview

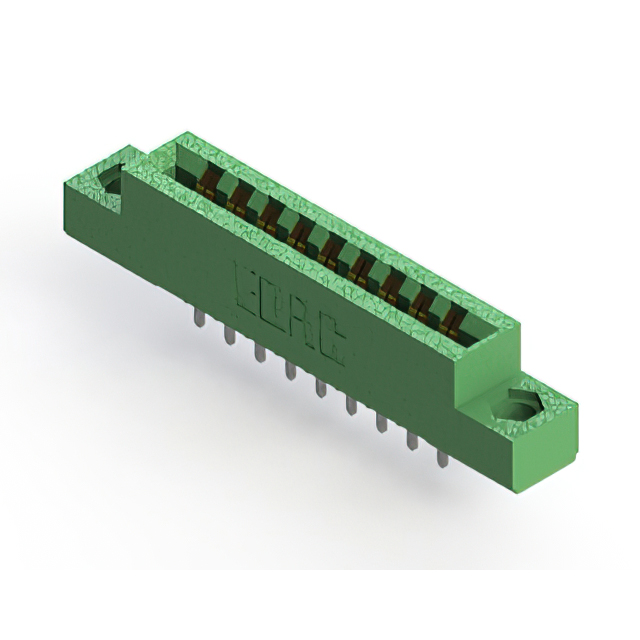

The EDAC Inc. 306-009-520-104 is a standard card edge connector receptacle from the 306 series. It features 18 positions with a 3.96 mm (0.156 inch) pitch and supports dual-edge card types. The unit utilizes gold-plated copper alloy contacts on a green thermoplastic insulator body, designed for panel mount installation at a vertical angle. Electrical specifications include a 5 A current rating and 5 GOhms insulation resistance. The connector accommodates printed circuit boards with a nominal thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Features cantilever contact type with gold plating for reliable signal transmission
• Designed with a low-profile insulator body for space-constrained applications
• Accepts non-specified dual-edge card types with standard board thickness

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Telecommunications equipment interfaces
• Computing hardware backplane connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific ordering suffix matches the required contact finish and pin configuration. Ensure compatibility with the target PCB thickness and mounting style before finalizing acquisition orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, dual-edge card edge connector is required for vertical panel mounting. The 3.96 mm pitch and 18-position count define the interface density. Consider the thermoplastic housing material and gold contact finish for corrosion resistance and conductivity in demanding environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of edgeboard connectors, which are engineered for robust performance in electronic assemblies. The series offers various position counts and termination options, providing flexibility for different board integration needs while maintaining consistent electrical characteristics across the product line.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical ratings if considering alternative manufacturers or different series within the same brand.
