306-009-521-101

Edgeboard Connectors Overview

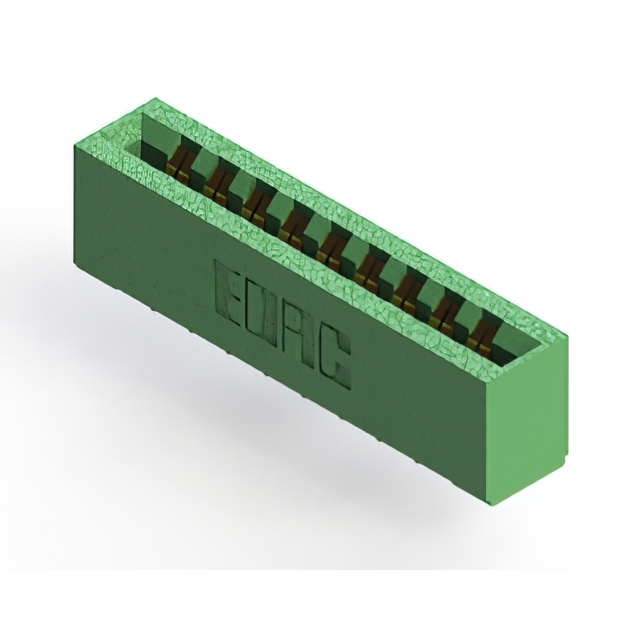

The EDAC Inc. 306-009-521-101 is a dual female edgeboard connector designed for through-hole mounting. It features 18 positions with a contact spacing of 0.156 inches (3.96mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Contact surfaces are gold-plated, and the insulator body is constructed from thermoplastic polyester. This component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual female configuration with single centerline row
• Low profile insulator body design
• Gold-plated contacts for reliable signal transmission
• Through-hole termination method

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct pin count and spacing specifications. Confirm that the required board thickness aligns with the 0.062-inch nominal tolerance. Check for any industry-specific certifications or environmental compliance requirements prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile dual female edge connector is required for standard thickness PCBs. Ensure the application environment falls within the specified operating temperature range. Verify mechanical fit regarding panel cutouts and mounting constraints before integration into the system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of edgeboard connectors. The series offers various position counts and spacing options tailored for different board thicknesses. The 306-009 variant specifically addresses applications requiring 18 positions with a 3.96mm pitch.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Do not assume compatibility based solely on similar pin counts or spacing without verifying mechanical and electrical specifications.
