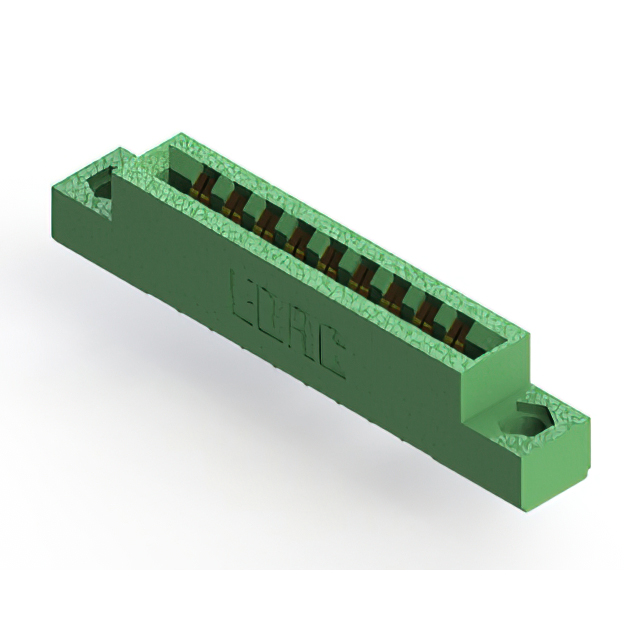

306-009-521-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-009-521-104
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-009-521-104
Edgeboard Connectors Overview
The EDAC Inc. 306-009-521-104 is a dual female card edge connector with 18 positions and a 0.156-inch (3.96mm) contact spacing. It features a single centerline row, accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm), and utilizes a low-profile insulator body for compact mounting applications.
Edgeboard Connectors Feature Summary
- Dual female configuration with single centerline row design
- Low-profile insulator body construction
- Accepts 0.062 inch nominal thickness PCBs
Edgeboard Connectors Applications
- Panel-mounted electronic assemblies
- Industrial control systems
- Communication equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the specific pin count and spacing requirements against the target PCB layout before procurement. Confirm that the board thickness falls within the acceptable range for reliable contact engagement. Ensure the selected variant matches the required termination style and environmental specifications for the intended operational conditions.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, dual-sided connection is required for thin circuit boards. The 0.156-inch spacing provides robust mechanical stability compared to finer pitches. Consider the panel installation method and ensure adequate clearance for the connector height in the final assembly design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options designed for general-purpose interconnect needs. The 306-009-521-104 specifically addresses applications requiring an 18-position interface with standard spacing.
Edgeboard Connectors Replacement Considerations
Direct substitutes must match the 18-position count, 0.156-inch pitch, and dual female configuration. Verify compatibility with 0.062-inch board thickness and similar low-profile dimensions to ensure proper fit in existing panel mounts.
