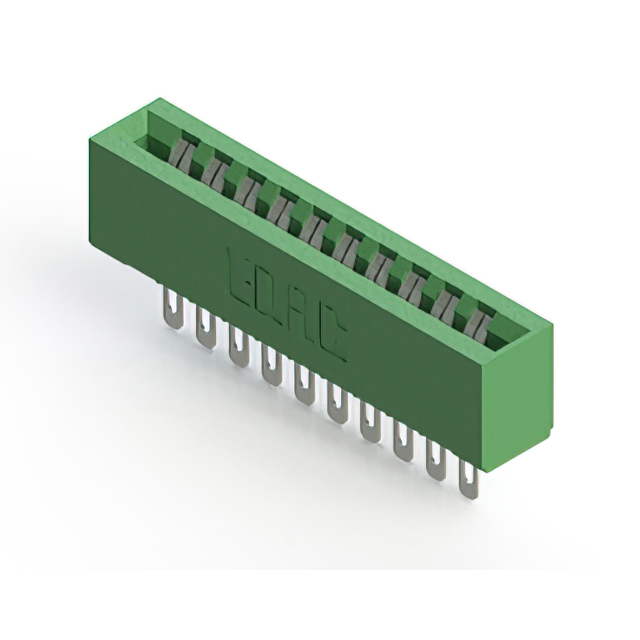

306-010-400-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-400-101
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-400-101
Edgeboard Connectors Overview
The EDAC Inc. 306-010-400-101 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a single row of 20 female contacts with a pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated phosphor bronze contacts and a thermoplastic polyester housing. It supports a PCB thickness of 1.57 mm and employs solder pin termination. The component is rated for 5 A current and complies with RoHS standards.
Edgeboard Connectors Feature Summary
- Vertical panel mount configuration for secure installation
- Gold-plated phosphor bronze contacts for reliable conductivity
- Thermoplastic polyester housing material for durability
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with design requirements. Confirm that the single-row, 20-position configuration matches the intended PCB layout. Check for any regional shipping restrictions or availability updates from authorized distributors before finalizing procurement plans.
Edgeboard Connectors Selection Notes
Select this connector when a vertical, single-row card edge interface is required. Ensure the target printed circuit board accommodates the specified 1.57 mm thickness. Verify that the 0.156-inch contact pitch aligns with the mating edgeboard dimensions. Consider the 5 A current rating and gold plating for environmental and electrical performance needs.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose interconnect solutions. It is manufactured by EDAC Inc., a provider of electronic connectors for diverse industries including industrial and consumer markets.
Edgeboard Connectors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult official EDAC documentation or authorized distributor databases for verified equivalents.
