306-010-400-102

Edgeboard Connectors Overview

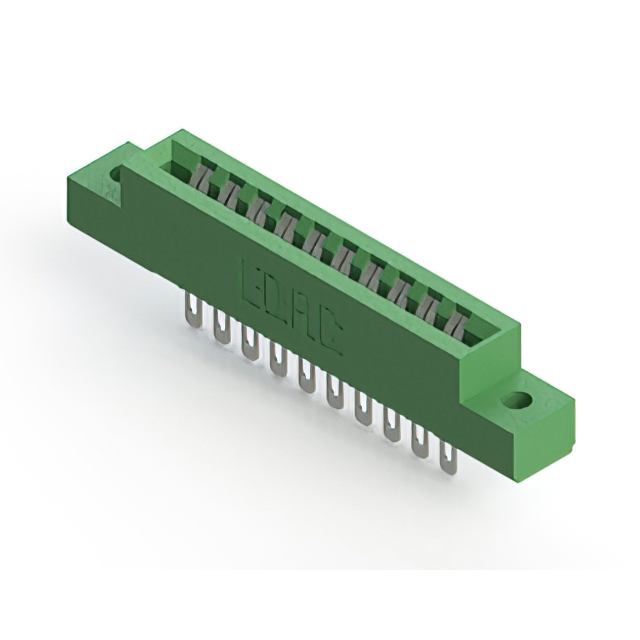

The EDAC Inc. model 306-010-400-102 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual-edge female configuration with 20 positions and a contact spacing of 0.156 inches (3.96 mm). The component utilizes tin-plated copper alloy contacts and a green thermoplastic insulator. It supports a board thickness of 1.57 mm and employs solder pin termination for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating double-sided circuit boards
• Vertical orientation optimized for direct panel mounting integration
• Tin-plated copper alloy contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Consumer electronics module assembly

Edgeboard Connectors Procurement Notes

Verify the specific plating finish, as some sources indicate tin while others may reference gold variants within the same series. Confirm that the 20-position count aligns with your board layout requirements. Ensure the 3.96 mm pitch matches your edgeboard dimensions. Check RoHS compliance status before finalizing procurement orders to meet regulatory standards.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connection is required for vertical panel mounting. The 3.96 mm pitch suits standard thick board designs. Consider the tin plating for cost-effective general-purpose applications. Verify compatibility with existing tooling for insertion forces and mating cycles.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and plating options. The 306-010-400-102 specifically addresses needs for moderate-density connections with robust mechanical stability in industrial environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series parts with matching 20-position counts and 3.96 mm pitch. Cross-reference competitors offering identical dual-edge female configurations with vertical panel mount styles.
