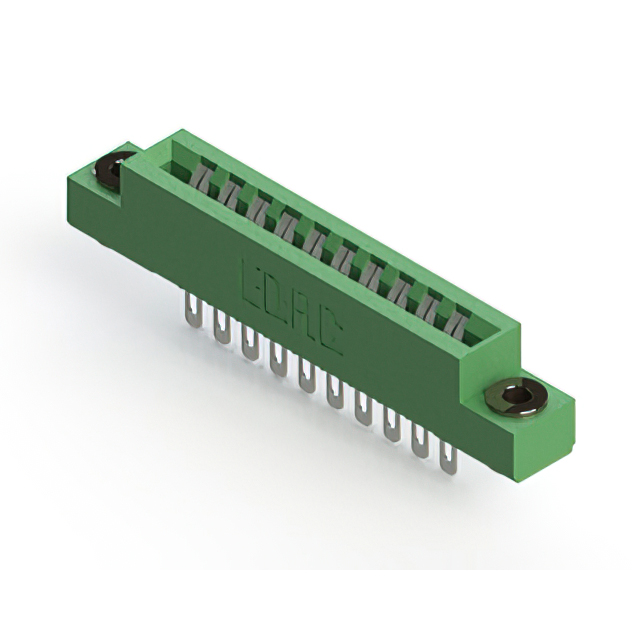

306-010-400-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-400-103
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-400-103
Edgeboard Connectors Overview
The EDAC Inc. 306-010-400-103 is a standard card edge connector from the 306 series, designed as a receptacle header. It features 10 positions with a 0.156-inch (3.96 mm) pitch and supports a single row of contacts. The component accommodates a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. Rated for 5 A current, it employs a thermoplastic polyester housing and is intended for vertical panel mount installation using solder pin termination.
Edgeboard Connectors Feature Summary
- Vertical panel mount configuration for secure integration
- Gold-plated copper alloy contacts ensure durability
- Thermoplastic polyester housing provides insulation
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the vertical panel mount style aligns with the mechanical enclosure design requirements.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, single-row card edge interface is required. The 3.96 mm pitch suits applications needing moderate density without excessive miniaturization. Verify that the 5 A current rating meets the electrical load requirements of the circuit design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series, which offers a range of standard card edge connectors. The series typically includes various position counts and mounting styles, providing flexibility for different board-to-board or backplane interconnection needs within industrial and commercial electronic systems.
Edgeboard Connectors Replacement Considerations
Direct substitutes include other EDAC 306 series headers with matching 10-position configurations and 3.96 mm pitch. Cross-reference mechanical dimensions and termination types to ensure interchangeability.
