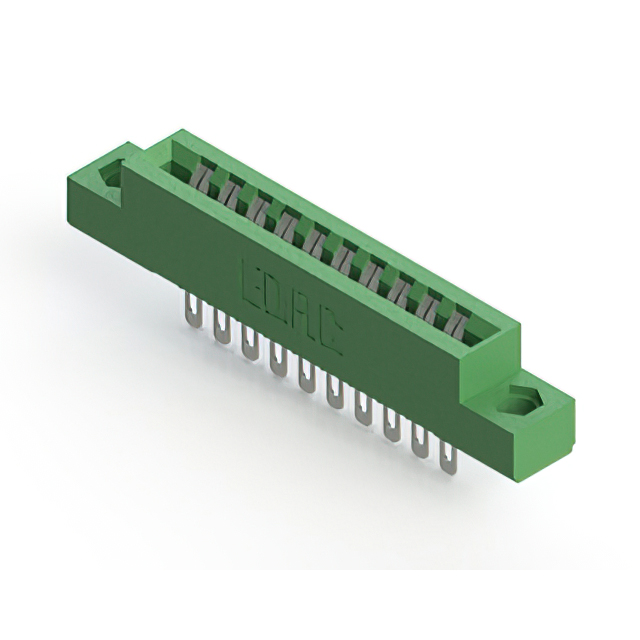

306-010-400-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-400-104
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-400-104
Edgeboard Connectors Overview
The EDAC Inc. 306-010-400-104 is a standard card edge connector receptacle designed for dual-edge board insertion. It features 20 positions arranged in a single row with a 0.156-inch (3.96 mm) pitch. The unit utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It supports a 5 A current rating and employs solder pin termination for secure panel mounting.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure dual-edge board engagement
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Computing hardware peripheral interfaces
Edgeboard Connectors Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm compatibility with target PCB thicknesses and mating requirements. Ensure that the selected variant matches the required contact plating and termination style specifications for the intended application environment.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge connection is required for robust mechanical retention. Evaluate the 0.156-inch pitch against available routing space. Confirm that the 5 A current capacity aligns with the circuit load requirements and that the panel mount orientation fits the enclosure design constraints.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and termination styles to accommodate diverse electronic assembly needs. This specific model represents a high-reliability option for demanding industrial environments requiring stable electrical connections.
Edgeboard Connectors Replacement Considerations
Cross-reference compatible parts within the EDAC 306 family or equivalent industry-standard connectors. Verify identical pitch, position count, and termination methods before substitution.
