306-010-400-107

Edgeboard Connectors Overview

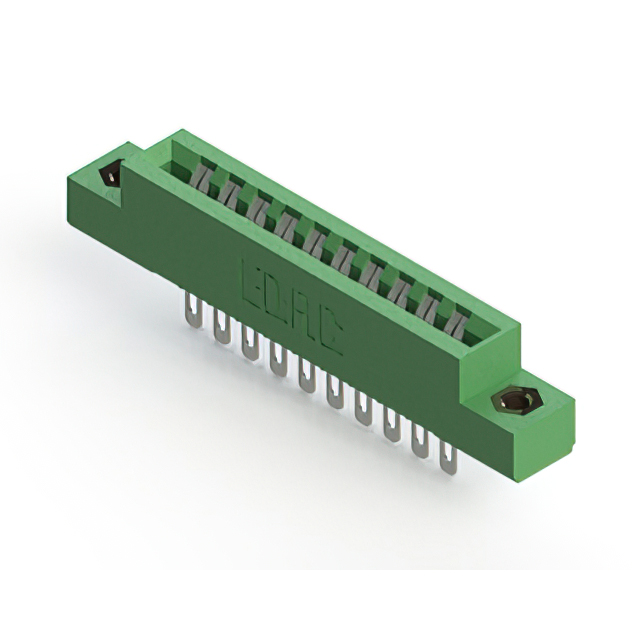

The EDAC Inc. model 306-010-400-107 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 20 positions arranged in two rows. The connector utilizes a 0.156 inch (3.96 mm) pitch and accommodates a board thickness of 1.57 mm. Contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. The housing is made of thermoplastic polyester, providing durability and insulation. This component supports vertical mounting angles and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic polyester housing for structural integrity
• Vertical panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections
• Automotive electronic circuit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact count and plating specifications. Ensure compatibility with the target PCB edge thickness and mounting hole dimensions. Confirm RoHS compliance status through official documentation before procurement. Cross-reference the manufacturer part number with distributor catalogs to avoid counterfeit components. Validate that the selected variant matches the required electrical rating for the application.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required. Consider the 5 A current rating and operating temperature limits for environmental suitability. Evaluate the panel mount style against available chassis space. Compare alternative series if single-row configurations or different pitches better suit the design constraints. Verify that the gold plating meets corrosion resistance requirements for the intended service life.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 306 series is characterized by its robust construction and reliable performance in demanding environments. It serves as a critical interface between flexible circuits and rigid printed circuit boards in modular systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching pitch and position counts. Verify mechanical dimensions and electrical ratings before swapping components. Consult official cross-reference guides for equivalent parts from other manufacturers. Ensure that any replacement maintains the same mounting style and contact material specifications.
