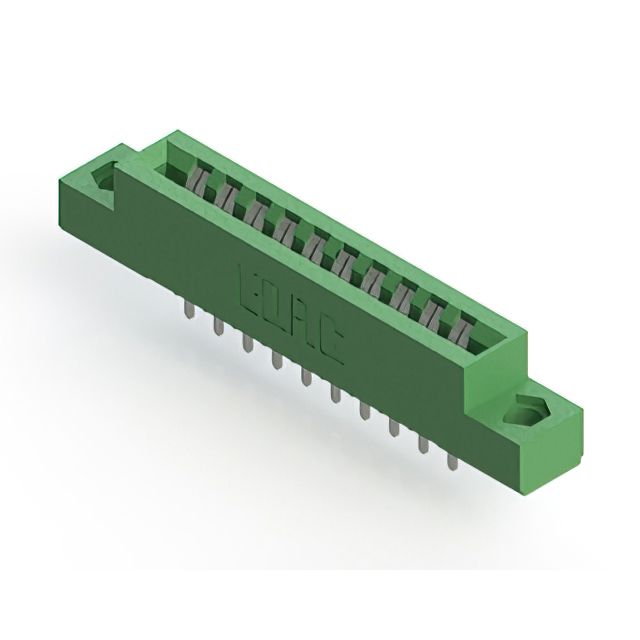

306-010-420-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-420-104
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-420-104
Edgeboard Connectors Overview
The EDAC Inc. 306-010-420-104 is a standard card edge connector receptacle from the 306 Series. It features 10 positions with a 3.96 mm pitch and accepts PCBs of 1.57 mm thickness. The connector utilizes gold-plated copper alloy contacts rated for 5 A current. Designed for vertical panel mount installation, it employs solder pin termination. The housing is constructed from thermoplastic polyester, ensuring reliable performance within an operating temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Vertical panel mount receptacle design
- Gold-plated copper alloy contact system
- Thermoplastic polyester insulator body
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement instrumentation
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating, board thickness compatibility, and termination style. Ensure the selected variant matches the required panel mounting configuration and electrical ratings for the target application environment.
Edgeboard Connectors Selection Notes
Select this component when a single-row, vertical card edge interface is required. Confirm that the mating PCB thickness aligns with the specified 1.57 mm nominal requirement. Evaluate the 5 A current rating and thermal limits to ensure suitability for the intended operational conditions.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 Series, which provides standard card edge connectors. The series offers various position counts and configurations, utilizing consistent 3.96 mm spacing and robust construction materials for general-purpose interconnect applications in electronic assemblies.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes. Verify identical pitch, row count, and mounting style before considering alternative part numbers.
