306-010-420-112

Edgeboard Connectors Overview

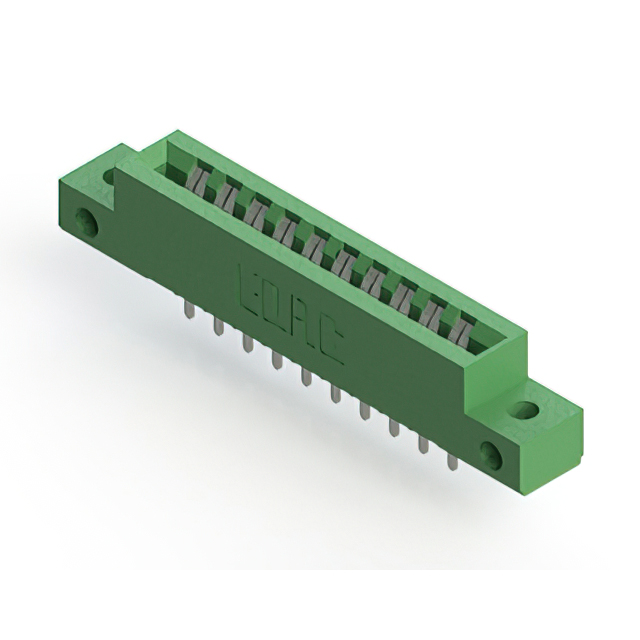

The EDAC Inc. model 306-010-420-112 is a standard card edge connector receptacle belonging to the 306 series. It features a single row with 20 positions and a contact spacing of 0.156 inches (3.96 mm). The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Electrical specifications include a current rating of 5 A and gold-plated copper alloy contacts. The housing is constructed from thermoplastic polyester, and the component supports vertical panel mount installation using solder pin termination.

Edgeboard Connectors Feature Summary

• Accepts standard PCB thickness of 0.062 inches for reliable mechanical engagement
• Utilizes gold-plated copper alloy contacts to ensure stable signal transmission
• Designed for vertical panel mounting applications requiring secure board retention

Edgeboard Connectors Applications

• Computing and storage systems
• Medical equipment interfaces
• Industrial control modules
• Communications network hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, plating type, and termination style. Ensure compatibility with the target PCB thickness and panel cutout dimensions before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with 0.156-inch spacing is required. Confirm that the application environment does not exceed the thermal limits of the thermoplastic polyester housing. Verify that the mating board thickness aligns with the 0.062-inch specification to ensure proper contact engagement and mechanical stability during operation.

Edgeboard Connectors Part Context

EDAC Inc. has provided interconnect solutions since 1966, specializing in card edge and rack-and-panel connectors. The 306 series represents a line of standard connectors designed for robust performance in demanding environments. This specific part integrates into broader system architectures where reliable high-density connections are necessary for data and power distribution across modular electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may differ in critical dimensions or material properties.
