306-010-421-102

Edgeboard Connectors Overview

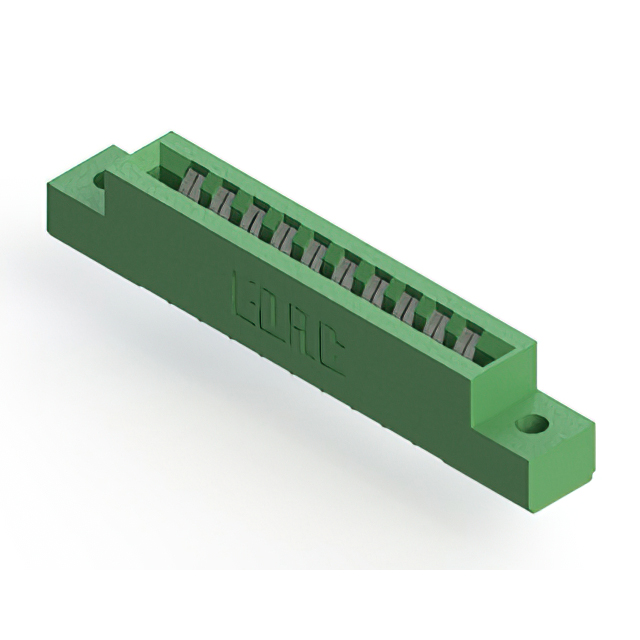

The EDAC Inc. 306-010-421-102 is a standard card edge connector receptacle from the 306 series. It features 20 positions arranged in a dual-edge configuration with a 3.96 mm (0.156 inch) pitch. The component utilizes tin-plated copper alloy contacts and a green thermoplastic polyester housing. Designed for panel mount installation at a vertical angle, it supports solder pin termination. The connector accommodates board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical panel mount design with solder pin termination
• Thermoplastic polyester insulation material for durability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and housing color specifications. Ensure that the selected variant matches the required board thickness tolerance and mounting style for your application. Cross-reference the part number with authorized distributors to confirm current availability and compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required for vertical panel mounting. Consider the tin-plated contact finish for general-purpose applications where gold plating is not strictly necessary. Verify that the housing material and operating temperature range meet the environmental requirements of the target assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs. Components in this family are designed for reliable performance in demanding industrial environments, providing robust mechanical stability and electrical continuity for edge-board applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for compatible substitutes. Alternative parts must match the 3.96 mm pitch, dual-edge configuration, and panel mount style. Verify that any replacement maintains the same thermal rating and contact termination method to ensure functional equivalence.
