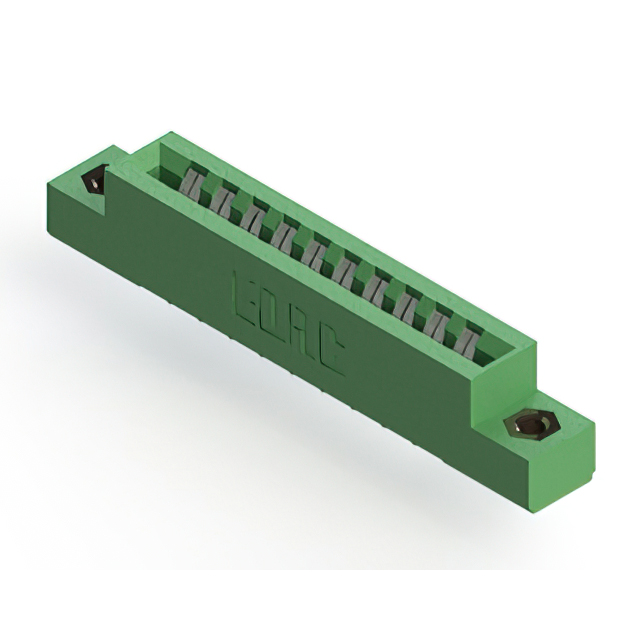

306-010-421-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-010-421-107
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-010-421-107
Edgeboard Connectors Overview
The EDAC Inc. model 306-010-421-107 is a standard card edge connector receptacle from the 306 series. It features 10 positions with a 3.96 mm pitch and accepts PCBs of 1.57 mm thickness. Designed for panel mount installation at a vertical angle, it utilizes gold-plated copper alloy contacts rated for 5 A current. The housing is constructed from thermoplastic polyester, providing insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- Accepts nominal 1.57 mm thick printed circuit boards
- Gold-plated copper alloy contacts ensure reliable conductivity
- Vertical panel mount design facilitates secure board insertion
Edgeboard Connectors Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm contact plating and termination type. Confirm that the target application requires a 1.57 mm board thickness specification. Ensure compatibility with the 3.96 mm pitch requirement before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a low-profile vertical receptacle is required for single-row connections. Consider the 5 A current rating and thermoplastic polyester housing material for environmental suitability. Verify that the panel mount style aligns with the mechanical assembly constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-010-421-107 specifically addresses needs for compact, high-reliability vertical connections in space-constrained electronic assemblies.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 series parts for alternative position counts. Verify mechanical dimensions against existing board layouts. Ensure electrical ratings match system requirements before substituting.
