306-010-500-101

Edgeboard Connectors Overview

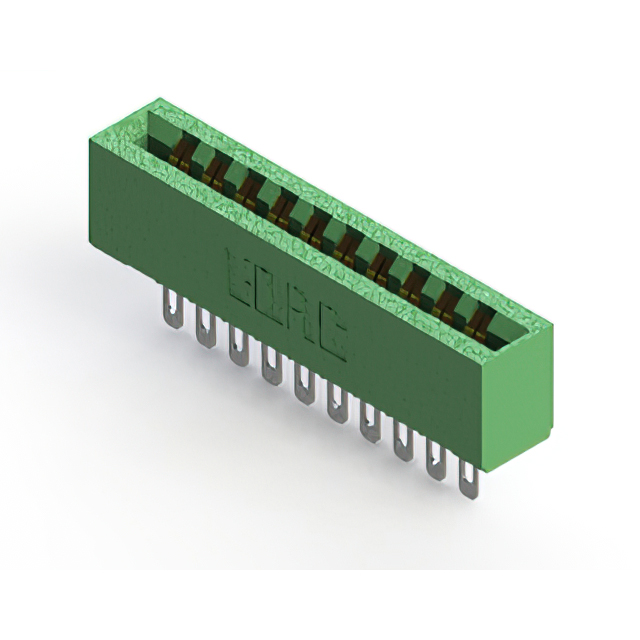

The EDAC Inc. 306-010-500-101 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 10 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. The termination method is solder pin, ensuring secure electrical connections.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable board insertion
• Low profile insulator body design for space-constrained applications
• Gold-plated contacts to ensure corrosion resistance and conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard form factor modules
• Test and measurement devices needing high-reliability connections
• Computer peripheral hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating type, and board thickness compatibility. Ensure the procurement source provides authentic EDAC Inc. components with traceable documentation. Cross-reference the part number with official distributor catalogs to confirm availability and lead times prior to finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a 10-position dual female card edge connector with 0.156-inch spacing is required. Confirm that the target PCB thickness matches the 0.062-inch specification. Evaluate the need for gold plating in corrosive environments. Consider the panel mount requirement and vertical orientation during mechanical design integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its low-profile design and use of thermoplastic polyester materials. The 306 series offers various position counts and configurations, making it suitable for a wide range of electronic interconnection needs where reliability and standard dimensions are prioritized.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 306-010-421-101, which shares similar dimensional and electrical characteristics. Verify that any replacement maintains the 10-position count, 0.156-inch pitch, and dual female configuration. Ensure material compatibility and mounting style match the original design requirements.
