306-010-500-112

Edgeboard Connectors Overview

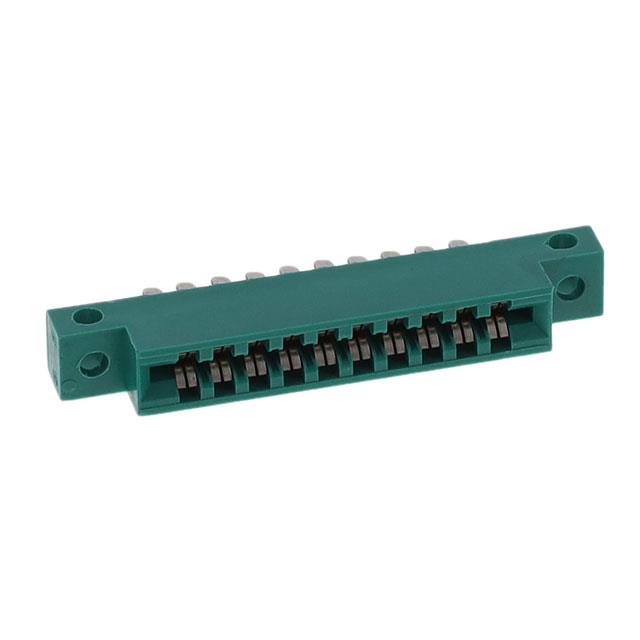

The EDAC Inc. 306-010-500-112 is a standard card edge connector from the 306 series, designed for panel mount installation. It features a dual female configuration with 20 positions arranged in two rows of ten. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm. Constructed with copper alloy contacts that are gold-plated, it ensures reliable electrical performance. The insulator body is made of thermoplastic polyester, providing durability and stability.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulator body for structural integrity

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interfaces
• Industrial control systems utilizing standardized PCB modules
• Communication equipment housing modular circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the procurement channel provides authentic components with valid traceability. Cross-reference the datasheet specifications regarding contact spacing and board thickness to guarantee proper mechanical fit. Confirm RoHS compliance status if required by your manufacturing standards before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided female interface is required for panel mounting applications. The 3.96 mm pitch accommodates standard PCB layouts, while the 1.57 mm board thickness tolerance ensures a snug fit. Consider the gold plating for environments where oxidation resistance is critical. Verify that the panel cutout dimensions align with the connector's flange specifications for a secure installation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and configurations to suit different module sizes. The 306-010-500-112 specifically addresses needs for dual-row connections with a robust mechanical design suitable for repeated insertion cycles.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pin counts and pitch but different mounting styles or contact finishes. Verify that any replacement maintains the 3.96 mm spacing and 1.57 mm board thickness acceptance to ensure mechanical compatibility.
