306-010-500-178

Edgeboard Connectors Overview

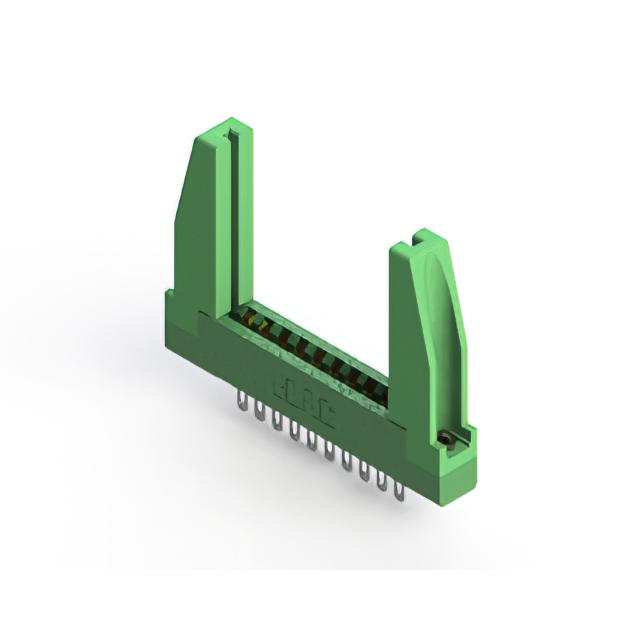

The EDAC Inc. 306-010-500-178 is a standard card edge connector receptacle featuring 20 positions in a dual female configuration. It utilizes a 3.96 mm (0.156 inch) pitch with copper alloy contacts that are gold-plated for reliable signal transmission. Designed for through-hole termination, this component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing durability for panel mount installations.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure corrosion resistance
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and mounting style variations. Ensure compatibility with target PCB thickness specifications before integration. Cross-reference manufacturer part numbers with distributor listings to validate authenticity and avoid counterfeit components during sourcing.

Edgeboard Connectors Selection Notes

Select this model when a 20-position dual-row interface with a 3.96 mm pitch is required. Confirm that the 5 A current rating meets circuit load requirements. Verify that the through-hole termination method aligns with the assembly process. Ensure the operating temperature range suits the environmental conditions of the final application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-010 variant specifically addresses applications requiring a 20-position dual female interface. It is designed for robust mechanical retention and electrical performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify that alternative parts maintain the same 3.96 mm pitch and dual female configuration to ensure mechanical fit.
