306-010-520-101

Edgeboard Connectors Overview

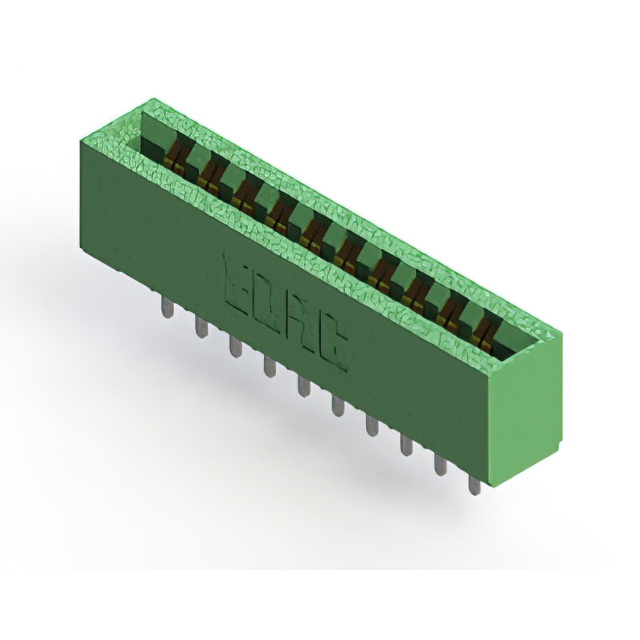

The EDAC Inc. 306-010-520-101 is a standard card edge connector receptacle from the 306 series, designed for vertical panel mount installation. It features a 10-position configuration with a 3.96 mm pitch and accommodates a board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. Rated for 5 A current, the unit utilizes a thermoplastic polyester housing and employs solder pin termination for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for stable mechanical integration
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Panel-mounted electronic assemblies
• Standard card edge interface applications

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required board thickness matches the specified 1.57 mm dimension. Confirm that the vertical orientation and panel mount style align with the mechanical constraints of the target enclosure. Check for any regional distribution restrictions or RoHS compliance details prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 10-position vertical card edge connector is required for panel mounting. The 3.96 mm pitch must match the mating card edge layout. Verify that the application environment does not exceed the thermal limits of the polyester housing. Ensure the solder pin termination method is compatible with the assembly process used for the printed circuit board.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations tailored for general-purpose electronic interconnections. The 306 series is characterized by its use of thermoplastic materials and gold-plated contacts, providing a balance of durability and electrical performance for industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the same series. Ensure that any replacement maintains the identical 10-position count, 3.96 mm pitch, and vertical panel mount form factor. Cross-reference mechanical dimensions and termination styles to guarantee physical compatibility.
