306-010-520-103

Edgeboard Connectors Overview

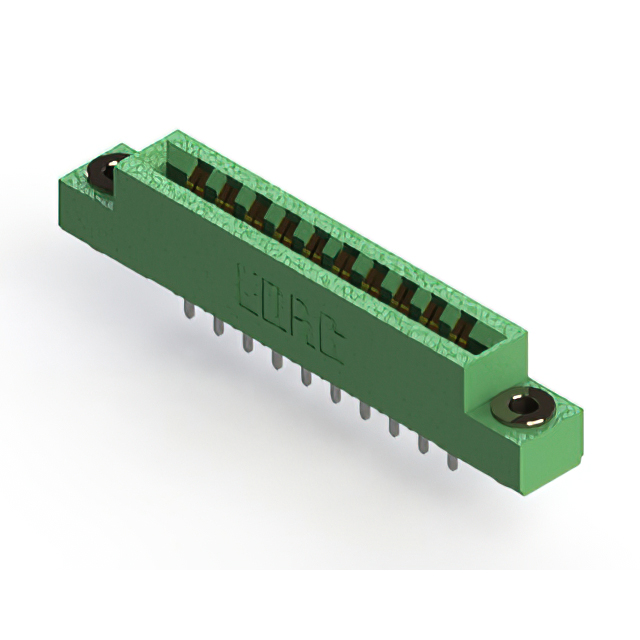

The EDAC Inc. 306-010-520-103 is a standard card edge connector receptacle featuring a dual female configuration with 20 positions. It utilizes a .156 inch (3.96 mm) contact spacing and is designed to accept printed circuit boards with a nominal thickness of .062 inch (1.57 mm). The component employs solder pin termination for secure mounting and incorporates gold plating on the contact areas to ensure reliable signal transmission. Constructed with a copper alloy contact material, this vertical panel mount device belongs to the EDAC 306 series.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for robust board interface
• Gold-plated copper alloy contacts for enhanced conductivity
• Vertical panel mount orientation for space-efficient integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target PCB specifications. Ensure that the required contact spacing and board thickness align with the design constraints. Cross-reference the termination type and mounting style to validate mechanical fit within the assembly enclosure before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual female card edge interface with .156 inch spacing is required for vertical panel applications. Consider the gold-plated copper alloy contacts for environments demanding high reliability and low contact resistance. Evaluate the .062 inch board thickness acceptance to ensure proper mating with the target electronic module without mechanical interference or excessive stress on the connector body.

Edgeboard Connectors Part Context

This component is part of the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic packaging needs. The 306-010-520-103 specifically addresses requirements for dual female connections with precise dimensional tolerances, supporting stable electrical performance in compact industrial and commercial hardware designs.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the 306 series. Ensure any replacement maintains identical contact spacing, board thickness tolerance, and termination style to preserve mechanical and electrical integrity.
