306-010-521-108

Edgeboard Connectors Overview

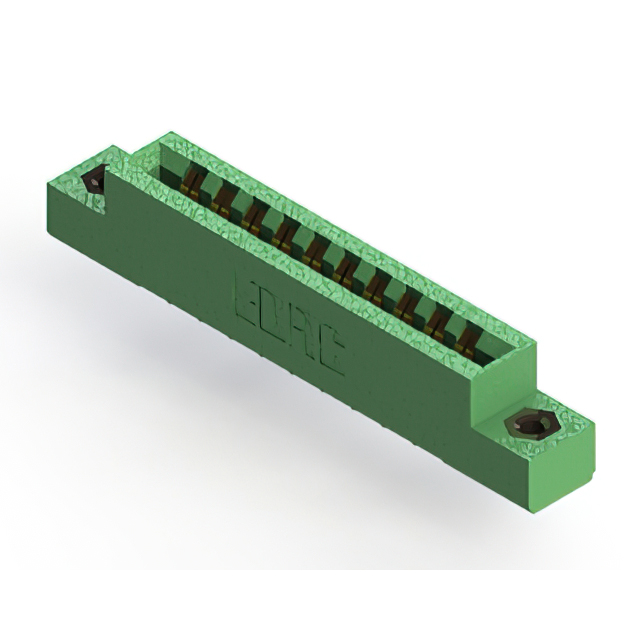

The EDAC Inc. 306-010-521-108 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual female configuration with 10 positions and a pitch of 3.96 mm (0.156 inches). The connector utilizes gold-plated contacts on a copper alloy substrate, ensuring reliable signal transmission. It is rated for 5 A current and operates within a temperature range of -40°C to 105°C. The housing is constructed from thermoplastic polyester, providing durability and insulation. This component supports PCB thicknesses of 1.57 mm and employs solder pin termination for secure board attachment.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with flush mount flange featuring threaded inserts
• Dual female contact configuration for secure card edge engagement
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulation housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Communication equipment utilizing standard card edge modules
• Medical devices needing reliable vertical connection interfaces
• Energy sector hardware with specific thermal operating requirements

Edgeboard Connectors Procurement Notes

Verify the exact position count and series designation against official EDAC documentation, as distributor listings may contain conflicting specifications regarding the number of positions or series family. Confirm that the green insulation color and specific flange thread details match the project requirements. Ensure compatibility with the target PCB thickness and mounting style before finalizing procurement orders to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector is required for systems operating between -40°C and 105°C. The 3.96 mm pitch and 10-position layout suit applications needing moderate density connections. Verify that the 5 A current rating meets the circuit demands. Consider the thermoplastic polyester material properties for environmental resilience and ensure the solder pin termination aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse electronic assembly needs. The 306-010-521-108 variant specifically addresses requirements for vertical orientation and panel mounting, distinguishing it from other series like the 357 or 887 which may differ in height or temperature ratings.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Potential alternatives within the 306 series may include variants with different position counts or flange configurations. Ensure any replacement maintains the 3.96 mm pitch and vertical mounting angle to preserve mechanical fit and electrical interface integrity without modifying the host panel design.
