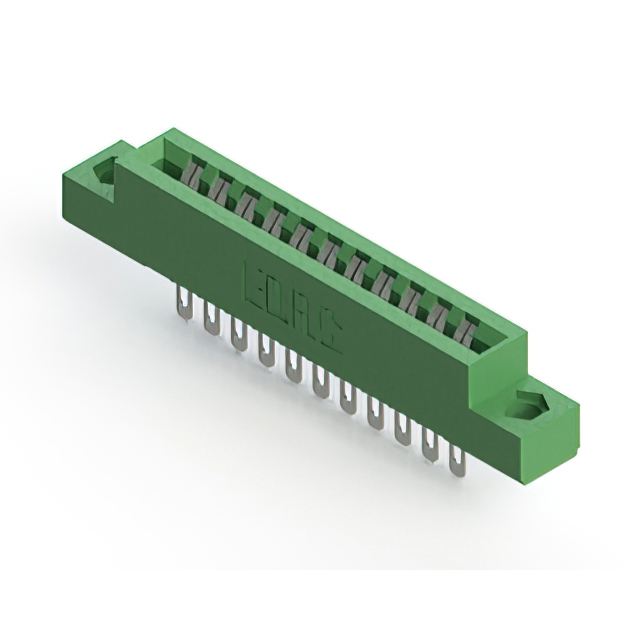

306-011-400-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-011-400-104
- Description：CONN EDGE DUAL FMALE 22POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：11
- Number of Positions：22
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-011-400-104
Edgeboard Connectors Overview
The EDAC Inc. model 306-011-400-104 is a standard card edge connector from the 306 series, designed for panel mount installation. It features a single row of female contacts with a pitch of 0.156 inches (3.96 mm). The connector accommodates a board thickness of 1.57 mm and utilizes solder eyelet termination. Contacts are constructed from copper alloy with a tin finish, rated for 5 A current.
Edgeboard Connectors Feature Summary
- Single row female contact configuration
- Panel mount vertical orientation
- Solder eyelet termination style
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific contact plating finish against official datasheets, as distributor listings may vary between tin and gold options for this series. Confirm that the housing material and insulation resistance meet project requirements before ordering. Ensure compatibility with the target PCB thickness and mounting constraints.
Edgeboard Connectors Selection Notes
Select this component when a single-row card edge interface with a 3.96 mm pitch is required. The tin-plated contacts offer cost-effective conductivity for general applications. Verify that the panel mount style aligns with the mechanical enclosure design and that the solder eyelet termination suits the assembly process.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series, which provides standard card edge connectors with a 0.156-inch contact spacing. The series includes various configurations for different board thicknesses and termination styles, serving diverse electronic interconnection needs across multiple industries.
Edgeboard Connectors Replacement Considerations
Direct substitutes within the same series include 306-011-420-104, which differs by having gold-plated contacts instead of tin. Other variants in the 306 series may share the same pitch but differ in contact count or termination type.
