306-011-400-108

Edgeboard Connectors Overview

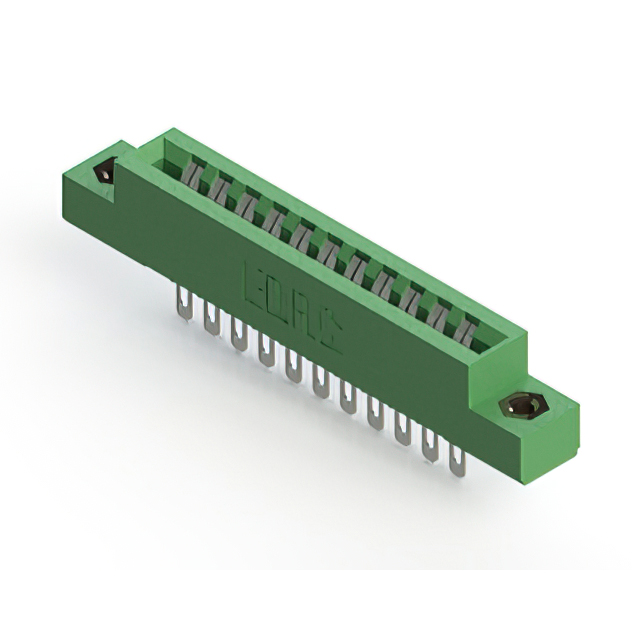

The EDAC Inc. part number 306-011-400-108 is a dual-row card edge connector receptacle from the 306 series. It features 22 positions with a contact pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator. Designed for panel mount installation, it supports a vertical orientation and employs solder pin termination. The unit is rated for 5 A current and accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for robust board-to-board connectivity
• Gold-plated copper alloy terminals ensure reliable signal transmission
• Vertical panel mount design facilitates structured assembly integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and insulation material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm during mechanical integration. Confirm that the 22-position dual-row format aligns with the required circuit density and routing constraints for the application design.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 0.156-inch spacing is required. The 5 A rating suits moderate power distribution needs. Verify that the vertical mounting style fits within the enclosure height limitations. Consider the solder pin termination method for standard wave or manual soldering processes.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series offers various position counts and row configurations. The 306-011-400-108 specifically addresses applications requiring a 22-position dual-row interface with high durability and precise alignment capabilities for electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series parts for alternative position counts. Verify mechanical dimensions against competitors like Samtec or Molex if sourcing alternatives. Ensure equivalent pitch and current ratings are maintained for functional substitution.
