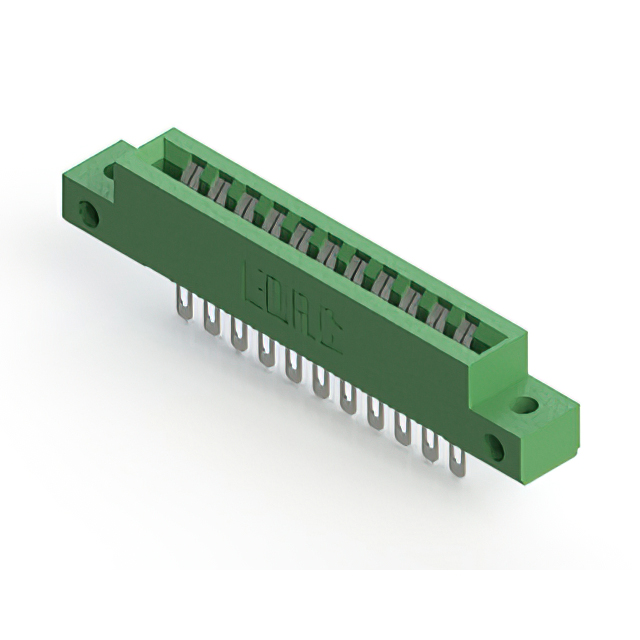

306-011-400-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-011-400-112
- Description：CONN EDGE DUAL FMALE 22POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：11
- Number of Positions：22
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-011-400-112
Edgeboard Connectors Overview
The EDAC Inc. model 306-011-400-112 is a panel mount edgeboard connector designed for single-row applications. It features a 0.156-inch (3.96mm) contact spacing and accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes a low-profile insulator body to facilitate compact assembly within electronic systems requiring reliable signal transmission.
Edgeboard Connectors Feature Summary
- Designed for single centreline row configurations
- Accommodates standard 0.062 inch nominal thickness PCBs
- Utilizes a low profile insulator body design
Edgeboard Connectors Applications
- Single-row edgeboard interconnection
- Panel mounted electronic assemblies
- Standard PCB interface applications
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure compatibility with required termination types and mounting options. Confirm that the selected variant matches the intended board thickness and contact spacing requirements before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a single-row configuration is required for edgeboard connections. Ensure the application environment supports the specified contact spacing and that the PCB thickness aligns with the 0.062-inch nominal requirement for proper mechanical engagement and electrical reliability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series, which provides various connector solutions including additional contact terminations and extra mounting options. The series offers multiple card guide solutions and high-temperature insulators to support diverse industrial and commercial electronic interconnect needs.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series Ordering Guide to identify compatible substitutes. Verify that alternative parts maintain identical contact spacing, board thickness acceptance, and mounting characteristics to ensure functional equivalence.
