306-011-420-107

Edgeboard Connectors Overview

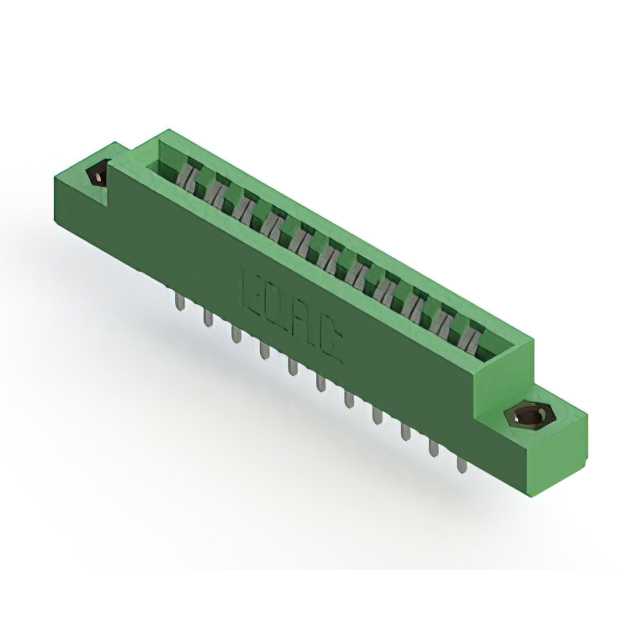

The EDAC Inc. 306-011-420-107 is a standard card edge connector classified as a receptacle within the 306 series. It features 22 positions with a contact spacing of 3.96 mm (0.156 inches). Designed for dual-edge female connections, it accommodates printed circuit boards with a thickness range of 1.37 mm to 1.78 mm. The component utilizes solder pin termination and includes tin plating on all contacts. It is intended for panel mount installation in vertical orientation.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Vertical panel mount design for stable structural integration
• Tin-plated solder pin termination for reliable electrical connection

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge board interfaces
• Telecommunications equipment utilizing standard card edge modules
• Test and measurement instrumentation with modular circuit boards

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 22-position count and 3.96 mm pitch before ordering. Confirm compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm to ensure proper mechanical fit. Check for any regional distribution restrictions or lead time variations associated with the manufacturer's current production schedule. Ensure the tin-plated contact finish meets the environmental requirements of the application.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for vertical panel mounting. The 3.96 mm pitch is suitable for applications needing wider spacing between signal lines. Verify that the tin-plated termination is acceptable for the soldering process used. Consider the 22-position capacity against the total I/O requirements of the target circuit board design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions with a consistent 3.96 mm contact spacing. The series offers various position counts and termination styles to support different board densities. The 306-011-420-107 specifically addresses needs for dual-edge female receptacles with a fixed 22-position layout.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 306 series receptacles with matching 3.96 mm pitch and 22 positions, such as the 306-011-520-107 if gold plating is preferred. Cross-reference with other manufacturers offering standard .156 inch pitch dual-edge connectors to ensure identical mechanical dimensions and electrical ratings.
