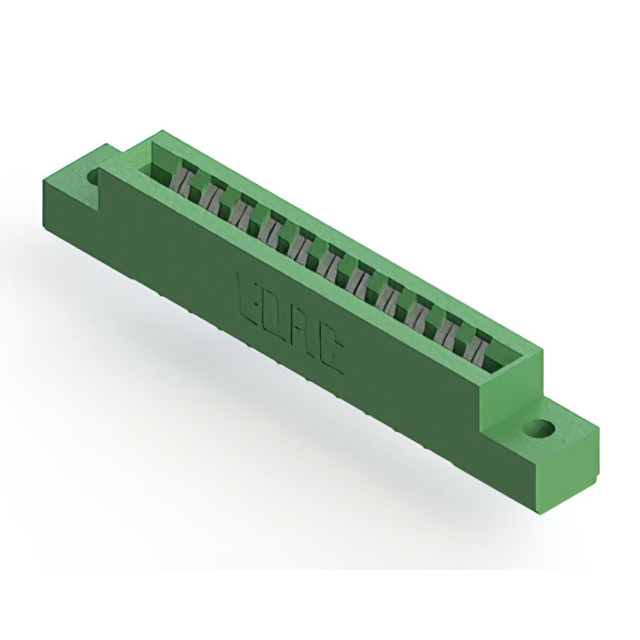

306-011-421-102

$6.81

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:5208037a4b79 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-011-421-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-011-421-102

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：11
Number of Positions：22
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-011-421-102

306-011-421-102

Edgeboard Connectors Overview

The EDAC Inc. 306-011-421-102 is a standard card edge connector from the 306 series, designed as a receptacle with 22 positions. It features a single row of contacts spaced at 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are gold-plated copper alloy, rated for 5 A current. The housing is made of thermoplastic polyester, and it supports vertical panel mount installation via solder pin termination.

Edgeboard Connectors Feature Summary

Accepts standard 0.062 inch thick PCBs
Gold-plated contact finish for reliable conductivity
Vertical panel mount design for secure integration

Edgeboard Connectors Applications

Industrial control systems requiring robust card edge interfaces
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix '102' against the manufacturer's latest datasheet to confirm plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the 22-position configuration matches the design requirements. Check for any regional distribution restrictions or lead time variations directly with authorized suppliers.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 3.96 mm pitch card edge connector is required for vertical panel mounting. It is suitable for applications needing 5 A current rating per contact. Consider the thermoplastic polyester housing for general environmental protection. Ensure the mating board thickness aligns with the 0.062 inch specification for proper engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its 3.96 mm contact spacing and low-profile insulator body. These connectors are widely used in modular electronic systems where reliable signal and power transmission between a carrier board and a plug-in module is essential.
