306-011-500-102

Edgeboard Connectors Overview

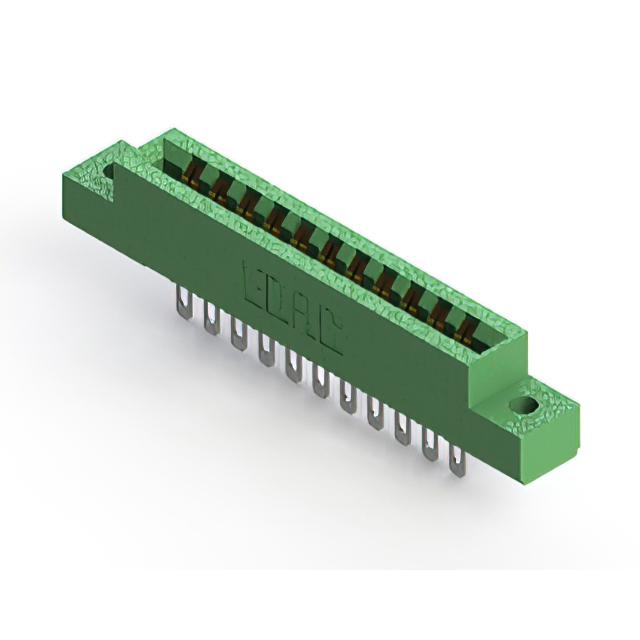

The EDAC Inc. 306-011-500-102 is a dual female card edge connector designed for panel mount applications. It features 22 positions with a pitch of 0.156 inches (3.96 mm). The connector supports a board thickness of 1.57 mm and utilizes gold-plated phosphor bronze contacts housed in a thermoplastic body. Rated for 5 A current, it offers an insulation resistance of 5 Gohms and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Thermoplastic housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Medical interconnect solutions such as ventilators
• Ambulance communication and monitoring systems
• CPAP machine internal connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix '102' against official EDAC documentation to confirm plating and material specifications. Ensure compatibility with the target PCB card thickness of 1.57 mm before integration. Confirm that the 22-position dual row layout matches the design requirements. Check for RoHS3 compliance status if required by project regulations.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface is required for vertical panel mounting. The 3.96 mm pitch accommodates standard card edge designs. Verify that the operating temperature range meets environmental demands. Ensure the 5 A current rating aligns with the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series includes various configurations for single and dual rows with different pin counts. The 306-011-500-102 specifically addresses needs for robust medical and industrial interconnects requiring high reliability.

Edgeboard Connectors Replacement Considerations

Consult EDAC official substitution lists for direct replacements. Verify mechanical dimensions and electrical ratings match exactly. Cross-reference with other manufacturers only if form-fit-function compatibility is confirmed.
