306-011-500-158

Edgeboard Connectors Overview

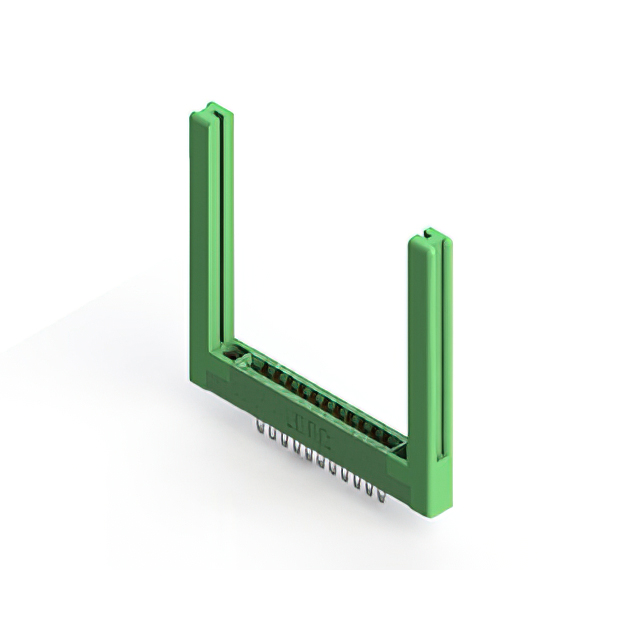

The EDAC Inc. model 306-011-500-158 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features 22 positions with a 0.156-inch (3.96 mm) pitch across two rows. The contacts are made of copper alloy with a gold plating finish, utilizing a cantilever contact type. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C. It supports board thicknesses from 0.054 to 0.070 inches and includes a flange with top openings and 4-40 threaded inserts.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever spring contacts for reliable signal transmission
• Thermoplastic polyester insulation housing providing thermal stability and durability
• Panel mount design with integrated flange featuring top openings and threaded inserts
• Gold-plated copper alloy contacts ensuring corrosion resistance and low contact impedance

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device circuit board connections
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure correct pin count, termination style, and flange configuration. Confirm that the required board thickness falls within the specified operational range of 0.054 to 0.070 inches. Check RoHS compliance status if restricted substances are a constraint for your assembly process.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface with a 0.156-inch pitch is required for vertical panel mounting. Ensure the application environment temperature remains within the -40°C to +105°C operating range. Consider the physical dimensions of the flange and threaded insert requirements during mechanical design integration to guarantee proper fitment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, a line of standard card edge connectors. The series offers various position counts and termination options. The 306-011-500-158 specifically denotes a 22-position variant with gold plating and a standard flange configuration, widely used in general-purpose industrial and commercial electronic assemblies requiring robust edgeboard connectivity.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants such as 306-007-521-158 or 306-030-521-158 for different position counts. Verify that any substitute maintains the same 0.156-inch pitch and dual-edge female contact type to ensure mechanical and electrical compatibility.
