306-011-500-178

Edgeboard Connectors Overview

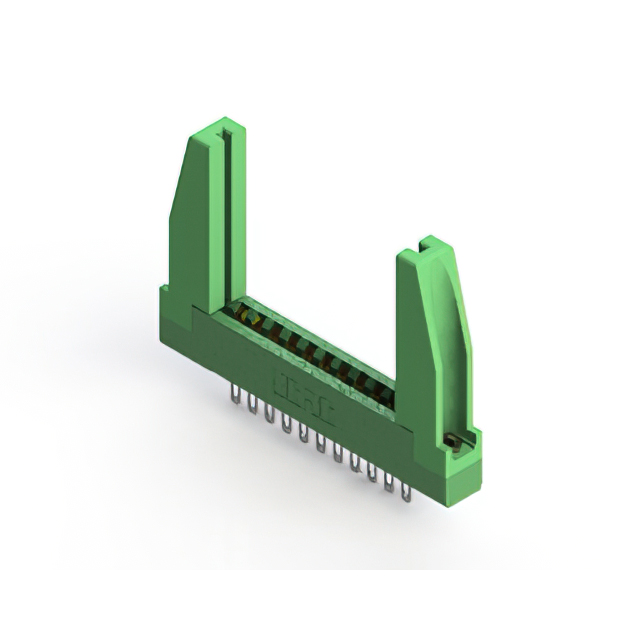

The EDAC Inc. model 306-011-500-178 is a standard card edge connector designed for single-row applications. It features 11 positions with a pitch of 3.96 mm (0.156 inches). The component utilizes a through-hole solder lug termination style and is intended for panel mount installation at a straight angle. The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. The housing is made of thermoplastic polyester, colored green, with a plastic height of 11.68 mm (0.460 inches).

Edgeboard Connectors Feature Summary

• Single-row configuration with 11 positions for compact circuit board integration.
• Gold-plated copper alloy contacts provide durable electrical connectivity.
• Thermoplastic polyester housing offers structural stability and insulation.
• Through-hole solder lug termination ensures secure mechanical attachment.

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interface.
• Industrial control systems utilizing modular circuit boards.
• Communication equipment with standardized connector interfaces.

Edgeboard Connectors Procurement Notes

Verify the specific pin count and pitch against design requirements before procurement. Confirm that the through-hole solder lug termination matches the PCB layout. Ensure the panel mount orientation aligns with the system enclosure design. Check for RoHS compliance documentation if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 11-position interface is required. The 3.96 mm pitch dictates compatible card edge thickness and guide rail dimensions. Consider the straight mounting angle for space-constrained vertical installations. Gold plating is suitable for general-purpose signal integrity needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series typically includes various position counts and termination styles. The 306 series is characterized by its robust thermoplastic construction and reliable contact performance for industrial applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 11-position count, 3.96 mm pitch, and single-row configuration. Verify compatibility with existing panel cutouts and card edge guides. Alternative parts should offer similar gold-plated contact materials and through-hole termination methods.
