306-011-520-104

Edgeboard Connectors Overview

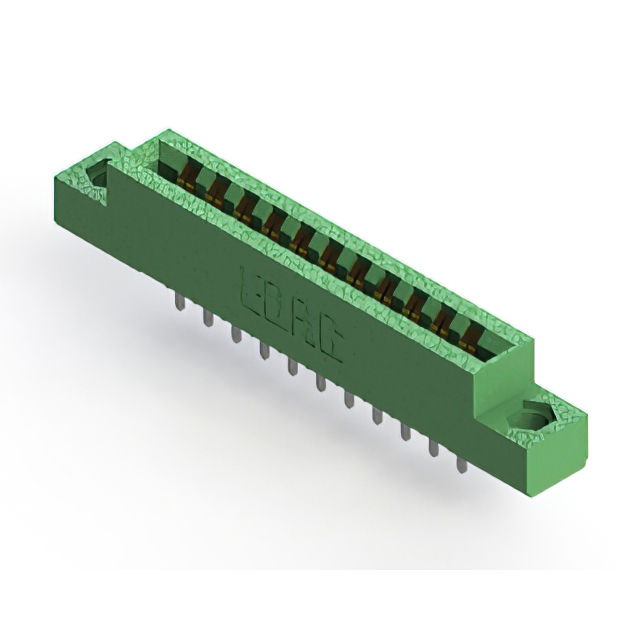

The EDAC Inc. 306-011-520-104 is a standard card edge connector from the 306 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 22 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and supports PCBs with a thickness of 1.57 mm. Constructed with copper alloy contacts plated with gold, it ensures low contact resistance and durability. The housing is made of thermoplastic material, providing stability and insulation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing for structural integrity
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Embedded computing modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications for your design. Confirm compatibility with the target PCB thickness and mounting requirements. Ensure that the supplier provides valid traceability documentation. Check for RoHS compliance status if environmental regulations apply to your project. Validate that the component is currently available from authorized channels before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 22-position interface is required with a 3.96 mm pitch. It is suitable for applications needing vertical panel mounting and high reliability. Consider the gold plating for environments where oxidation resistance is critical. Evaluate the thermoplastic housing properties against thermal and mechanical stress requirements of the end application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is known for offering various termination options and mounting styles. The 306-011-520-104 specifically addresses needs for dual-edge board connections with standardized dimensions. It serves as a key interface element in modular electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 306-011-520-102 and 306-011-520-158, which share similar form factors but may differ in specific packaging or minor dimensional tolerances. Verify exact pinout and mechanical fit before substitution.
